| Part Number | 53269886501 |
| Previous Version | 5326-988-6501 5326 988 6501 |
| OE number | 04259722, 03047687, 4259722, 3047687, 04259722KZ, 03047687KZ, F71820209001, F718202090010, 04252301, 12152917 |
| Year | 2001- |
| Description | Deutz (M.W.M.) Tractor, Fendt Various 711 712 714 716 716 815 817 818 TMS |
| Manufacturer Part Number | 53269706501, 5326-970-6501, 5326 970 6501 |
| CHRA | 53267100084 (5326-710-0084) $850.00 |
| Turbo Model | K26-3065OXAKB10.22GASQB |
| Engine | BF6M2013EC, TD226-B3 |
| Displacement | 5.7L, 5700 ccm |
| KW | 148/201 |
| RPM Max | 2100 |
| Fuel | Diesel |
| Angle α (compressor housing) | 260° |
| Angle β (turbine housing) | 10° |
| Bearing Housing | 53261500026 (53241500004, 53261500016) (858705) |
| Turbine Wheel | 53261205011 (53261205009, 53261202128, 53261205002) (Ind. 58.7 mm, Exd. 82. mm, 12 Blades) |
| Comp. Wheel | 53271232336 |
| Back plate | 53271516810 (53271516737) |
| Heat shield Number | 53261652005 (53261652007) |
| Repair Kit | 53267110500 (53277110053, 53277110030) (1301027760) |
| Turbine Housing | 53261016510 (53261016508) |
| Compressor Cover | 53271013109 (53271013220) |
| Turbine Housing AR | 10 |
| Gasket Kit | 215408 27-898101475 |
| Gasket (oil outlet) | 210172 (Gasket paper) |
| Gasket (oil Inlet) | 210023 (52231586500, 147837) |
| NOTE | Intercooler |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Deutz

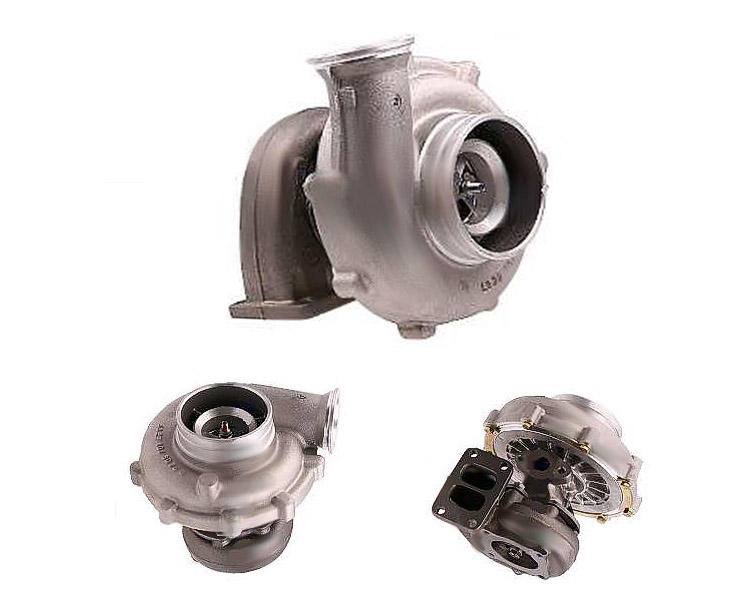

SUPART Deutz KHD (M.W.M.) Tractor K26 Turbo 53269886501
Applications
2001- Deutz (M.W.M.) Agricultural Tractor with BF6M2013EC Engine
