| Part Number | 53269886012 |
| Previous Version | 53269886009, 53269886012, 53269886014, 5326-988-6009, 5326-988-6012, 5326-988-6014, 5326 988 6012 |
| OE number | 04152326, 04154649, 04154649KZ, 2919938, 4152326, 4154649, 4154649KZ |
| Year | 1985-01 |
| Description | K.H.DEUTZ Tractor DX 5.90 |
| Manufacturer Part Number | 53269706009, 53269706012, 53269706014, 5326-970-6009, 5326-970-6012, 5326-970-6014, 5326-970-6012 |
| CHRA | 53267100040 (53267100037, 5326-710-0040) |
| Turbo Model | K26-2660GA6.11GAAQB, K262660GA12.11GAAQB |
| Engine | BF4L913 |
| Displacement | 4.09L, 4090 ccm |
| KW | 70/95 |
| RPM Max | 2150 |
| Angle α (compressor housing) | 333° |
| Angle β (turbine housing) | 194° |
| Bearing Housing | 53261500016 (53241500004, 53261500026)(858705)(Oil Cooled) |
| Turbine Wheel | 53261202119 (53261202107, 53261205002)(Ind. 64.3 mm, Exd. 54.5 mm, 12 Blades)(1301026436) |
| Comp. Wheel | 53261232036 (53261232017, 53261232007)(Ind. 39.71 mm, Exd. 65.94 mm, 6+6 Blades, Billet) |
| Back plate | 53261232036 (53261232017, 53261232007)(Ind. 39.71 mm, Exd. 65.94 mm, 6+6 Blades, Billet) |
| Heat shield Number | 53261652007 (53261652005)(206240002) |
| Repair Kit | 53297110001 |
| Turbine Housing | 53261016337 |
| Compressor Cover | 53261015218 (53261015205) |
| Turbine Housing AR | 6 |
| Gasket (oil outlet) | 52231586501 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585, 210060) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Deutz

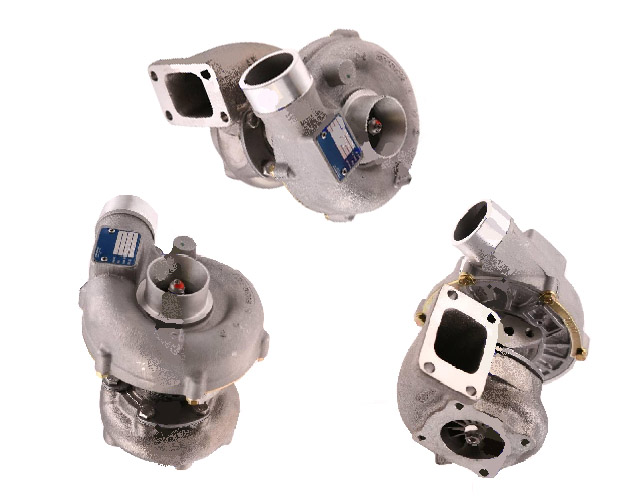

SUPART Deutz Tractor DX5.90 K26 Turbo 53269886012
Applications
1985-01 Deutz Agricultural Tractor DX 5.90 with BF4L913 Engine
