| Part Number | 53269886011 |
| Previous Version | 5326-988-6011, 53269886009 |
| OE number | 04154647, 04151571, 4154647, 4151571, 2919938, 02919938 |
| Year | 1984-11 |
| Description | Industrial, Truck, KHD BF4L913 |
| Manufacturer Part Number | 53269706011, 53269706009, 5326-970-6011, 5326-970-6009 |
| CHRA | 53267100040 (5326-710-0040) |
| Turbo Model | K26-2660GA8.11GAAQB |
| Engine | BF4L913 |
| Engine Manufacturer | Deutz |
| Displacement | 4.09L, 4090 ccm |
| KW | 78/106 |
| RPM Max | 2500 |
| Angle α (compressor housing) | 315° |
| Angle β (turbine housing) | 212° |
| Bearing Housing | 53261500016 (53241500004, 53261500026)(858705)(Oil Cooled) |
| Turbine Wheel | 53261202119 (53261202107, 53261205002)(Ind. 64.3 mm, Exd. 54.5 mm, 12 Blades)(1301026436) |
| Comp. Wheel | 53261232036 (53261232017, 53261232007)(Ind. 39.71 mm, Exd. 65.94 mm, 6+6 Blades, Billet) |
| Back plate | 53261515710 (53261515713) |
| Heat shield Number | 53261652007 (53261652005)(206240002) |
| Repair Kit | 53297110001 |
| Turbine Housing | 53261017300 |
| Compressor Cover | 53261015205 (53261015218) |
| Turbine Housing AR | 6 |
| Gasket (oil outlet) | 52231586501 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585, 210060) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Deutz

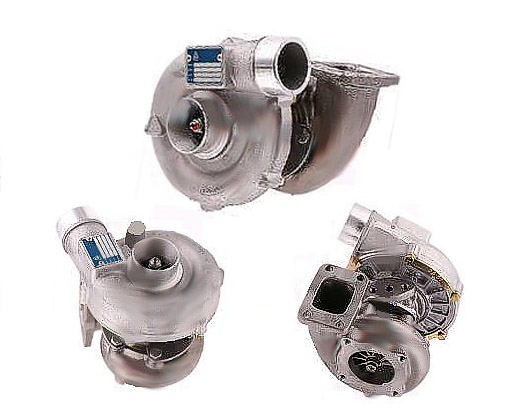

SUPART Deutz Truck, Industrial Engine K26 Turbo 53269886011
Applications
1984-11 Deutz Industrial with BF4L913 Engine
1984-11 Deutz Truck with BF4L913 Engine
