| Part Number | 452014-5006S |
| Previous Version | 452014-0001, 452014-0002, 452014-0003, 452014-0004, 452014-0005, 452014-0006 |
| OE number | 91FF6K682AC, 91FF6K682AD |
| Description | Ford Escort Orion III |
| CHRA | 443854-0029 |
| Turbo Model | TB0259 |
| Engine | RTH, RFK, RFS |
| Displacement | 1.8L, 1753 ccm |
| Fuel | Diesel |
| KW | 66/90 HP |
| Angle α (compressor housing) | 155° |
| Angle β (turbine housing) | 90° |
| Bearing Housing | 430350-0007 |
| Turbine Wheel | 435243-0001 |
| Comp. Wheel | 410450-0012 |
| Back plate | 432280-0001 |
| Heat shield Number | 445118-0001 |
| Repair Kit | 709143-0001 |
| Turbine Housing | 413838-0004 |
| Compressor Cover | 409589-0346/413843-0006 |
| Turbine Housing AR | 0.30 |
| Actuator | 432340-0035 |
| Settings Waste gate (pressure) | 1.010 - 1.050 bar |
| Settings Waste gate (lift rod) | 0.38 mm |
| Gasket (turbine inlet) | 210304 |
| Gasket (turbine outlet) | 210688 |
| Gasket (turbine outlet) | 413709-0001 |
| Manufacturer | Honeywell-Garrett |
Ford

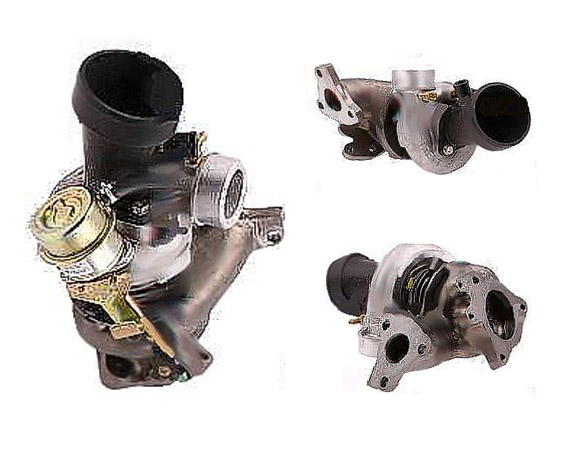

SUPART Ford Escort TB0259 Turbo 452014-0006
Applications
1993-00 Ford Escort 1.8L TD with RTH, RFK, RFS Engine
1992-93 Ford Orion III 1.8L TD (GAL) with RTH, RFK, RFS Engine
