| Part Number | 53039880270 |
| Previous Version | 5303-988-0270, 5303 988 0270, 53039880293, 53039880308, 53039880366, 53039880418, 53039880444, 53039880269, 5303-998-0212, 5303-998-0270, 5303-998-0314, 5303-998-0600 |
| OE Number | CB5E-6K682-AB, CB5E-6K682-AC, CB5E-6K682-AD, CB5E6K682AB, CB5E6K682AC, CB5E6K682AD, CB5Z-6K682-A, CB5Z-6K682-E, CB5Z-6K682-H, CB5Z6K682A, CB5Z6K682E, CB5Z6K682H |
| Year | 2011-14 |
| Description | Ford Focus, Galaxy, Kuga, Mondeo, S-max, Explorer, Edge, Lincoln MKZ |
| Manufacturer Part Number | 53039700270, 5303-970-0212, 5303-970-0270, 5303-970-0314, 5303-970-0600, 53039700212, 53039700270, 53039700314, 53039700600 |
| Turbo Model | K03-2080DCB5.88CCAXX, K03 |
| CHRA | 53037100565 (5303-710-0565)(1302003940, 1000030248) |
| Engine Manufacturer | Ford |
| Engine | EcoBoost, SCTi |
| Displacement | 2.0L, 2000 ccm, 4 Cylinders |
| KW | 177/203 |
| RPM Max | 5000 |
| Fuel | Gasoline |
| Angle α (compressor housing) | 0° |
| Angle β (turbine housing) | 0° |
| Bearing Housing | 53031504505 (Water Cooled)(1302003461, 1900011235I) |
| Turbine Wheel | 53031208515 (53031208514)(Ind. 44.95 mm, Exd. 40.23 mm, Trm 7.62, 9 Blades)(1302003447, 1100016434) |
| Comp. Wheel | 53041232223 (53041232241)(Ind. 41.02 mm, Exd. 53.84 mm, Trm 6.88, 6+6 Blades, Superback)(1302003416, 1200016319) |
| Back plate, Seal plate | 53041505701 (53041515709)(1302003305, 1300016042) |
| Heat shield Number | 53031652015 (53031652009, 53031652021, 53031652022)(1302003343, 2030016037) |
| Repair Kit | 53037110000 (Major)(Single Feed)(Inc. Thrust Parts)(1302003754, 5000-040-005) |
| Note | Inter-cooler, Water Cooled |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Ford

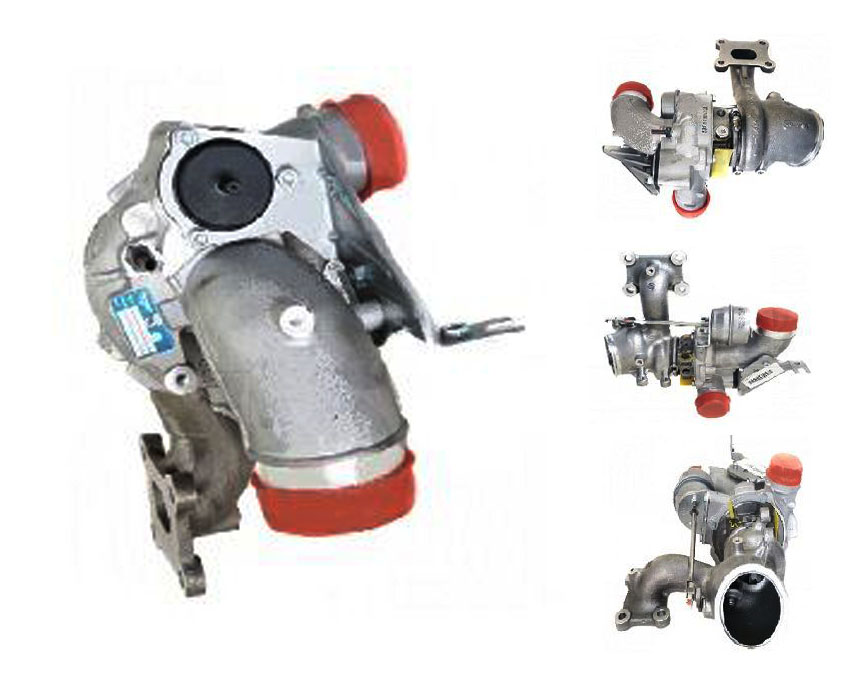

SUPART Ford Explorer, Edge K03 Turbo 53039880270
Applications
2011-14 Ford Explorer, Edge With SCTi, EcoBoost Engine
2009-14 Ford Focus, Galaxy, Kuga, Mondeo, S-max 2.0L With SCTi, EcoBoost Engine
2009-14 Volvo C30, C50, C60, C70, S50, S60, S70, S80, XC60 2.0L With SCTi, EcoBoost Engine
2009-14 Land Rover Freelander, Evoque 2.0L With SCTi, EcoBoost Engine
