| Part Number | 452244-5005S |
| Previous Version | 452244-0005, 452244-0004, 452244-5 |
| OE number | XS4Q6K682BB, 1079399 |
| Year | 1998-04 |
| Description | Ford Focus TDdi |
| CHRA | 433289-0080 (433289-0066) |
| Turbo Model | GT1544S |
| Engine Manufacturer | BHDA, BHDB, VW, C9DC, Duratorq |
| Displacement | 1.8L, 1753 ccm, 4 Cylinders |
| KW | 89/90 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 189.6º |
| Angle β (turbine housing) | 90º |
| Bearing Housing | 435793-0010 (1102015458) |
| Turbine Wheel | 433290-0042 (Ind. 42 mm, Exd. 32.2 mm, Trm 59, 10 Blades) (433158-0001, 433158-0005, 433290-0004, 434712-0020) (1102015437) |
| Comp. Wheel | 436133-0010/436133-0003 (Ind. 44. mm, Exd. 31.1 mm, Trm 50, 6+6) (1102015423) |
| Back plate | 700593-0001 (1102015308) (OD 95 mm/10 mm P/Ring) |
| Heat shield Number | 434302-0001 (1102015343) |
| Repair Kit | 732252-0001 (1102015756) |
| Turbine Housing | 434287-0016 |
| Compressor Cover | 435569-0003 |
| Turbine Housing AR | 0.34 |
| Actuator | 432340-0082 |
| Settings Waste gate (pressure) | 1.35-1.39 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket kit | 158-318/215349 |
| Gasket exhaust manifold | 210665 (Inox Steel) |
| Gasket (turbine outlet) | 210595 (Inox Steel) |
| Gasket (oil outlet, Non Metallic) | 210553, 2455001 (Paper) |
| Manufacturer | Honeywell-Garrett |
Ford

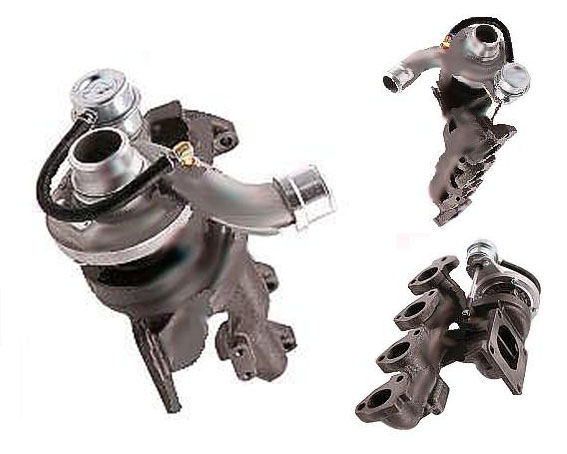

SUPART Ford Focus TDdi GT1544S Turbocharger 452244-0005
Applications
1998-04 Ford Focus I 1.8L TDi Engine C9DC
