| Part Number | 466290-5001S |
| Previous versions | 466290-0001, 466290-0002, 466290-1, 466290-2, 466290-0012, 466290-0013 |
| OE number | E5HN6K682CB, E5HN6K682CC, E6HZ6K682A, E6HZ6K682ARM, E7HZ6K682C, E8HZ6K682, E8HZ6K682A, E8HZ6K682ARM, E9HZ6K682B |
| Description | Ford Highway Truck Cargo, Highway Truck |
| CHRA | 408105-0258 (408105-5258S, 408105-0343, RE29488, E7HZ6N684B, E7HZ6N684A) |

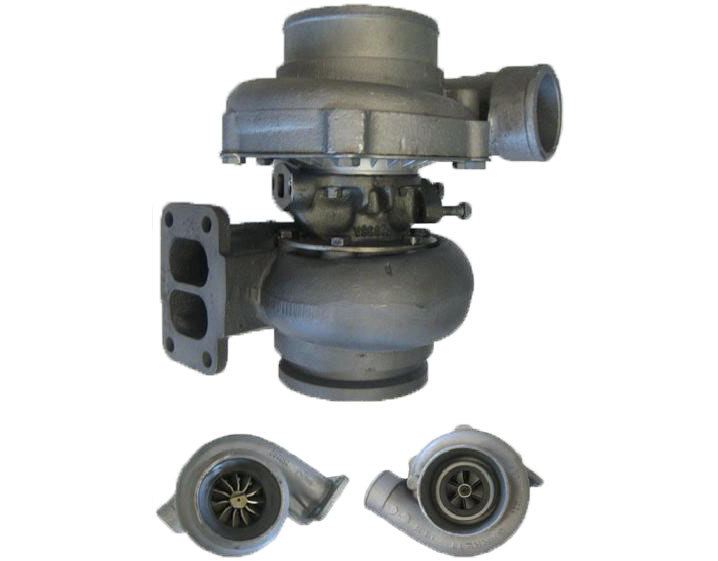

| Turbo Model | T04E14 |
| Displacement | 6.6L, 6600/7800 ccm, 6 Cylinders |
| KW | 165/185/240 |
| Fuel | Diesel |
| Engine | 401/474 |
| Angle α (compressor housing) | 180° |
| Angle β (turbine housing) | 75° |
| Bearing Housing | 430027-0021 (407285-0019, 430027-0051, 430027-0029, 430027-0032, 430027-0035, 430027-0025)(186880, 186882)(AR63781)(1100030451)(Oil Cooled) |
| Turbine Wheel | 446905-0002 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(AR43625, 1555236)(Ind. 74. mm, Exd. 64.61 mm, 11 Blades)(1100016090) |
| Comp. Wheel | 442293-0015 (1810441C1)(Ind. 50.8 mm, Exd. 75. mm, 6+6 Blades, Superback) |
| Back plate | 408045-0039 (408045-0030, 408045-0031, 408045-0038, 408045-0040, 408045-0061)(1300016001) |
| Heat Shield / Shroud | 409299-0001 (409299-0000, 407565-0000)(R43804)(7N0012)(311607, 311943)(2030016025) |
| Repair Kit | 468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010041) |
| Turbine Housing | 442374-0024 |
| Compressor Cover | 442203-0140 |
| Turbine Housing AR | 1.0/1.32 |
| Gasket (turbine inlet) | 407294-0001 (310694, 312617)(3901356, 3709861)(T30820)(Inox Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Gasket Kit | 215246 (1900100129, 2090505085) |
| Manufacturer | Honeywell-Garrett |
