| Part Number | 465564-5006S |
| Previous Part Number | 465564-0006, 465564-0004, 465564-0005, 465814-0001, 465814-5002S, 465814-0002 |
| OE number | E0ZE9G438FA, E0ZZ9G438E, E0ZZ9G438EX, E0ZZ-9G438-EX, E1ZZ-9G438-AX, E0ZE-9G438-FA, E0ZE9G438EA, E0ZE9G438DA, E1ZE9G438BA, E1ZE9G438AA, E1ZE-9G438-BA, E0ZE9G438CA, E0ZE9G438EA |
| Description | FORD Capri, Mustang |
| CHRA | 409174-0015 (409174-5015S, 409174-0006) |
| Turbo Model | TB0307 |
| Displacement | 2.3L, 2300 ccm, V6, 14 Cylinders |
| Fuel | Gas |
| Bearing Housing | 430027-0025/430027-0022 (186879, 186881)(1100030450)(Oil Cooled) |
| Turbine Wheel | 451310-0002 (Ind. 65. mm, Exd. 47.9 mm, 11 blades) |
| Comp. Wheel | 409096-0013 (1100030400)(103015-0000)(Ind. 60. mm, Exd. 46.5 mm, Trm 60, 6 blades) |
| Back plate | 409629-0004 |
| Heat shield Number | 409627-0000 (1100030340, 103121-0000) |
| Repair Kit | 707897-0001 (1100030750)(Dynamic) |
| Turbine Housing | 410637-0023 |
| Compressor Cover | 410364-0003 |
| Turbine Housing AR | 0.43 |
| Actuator | 410797-0002 |
| Settings Waste gate (pressure) | 0.43-0.50 bar |
| Settings Waste gate (lift rod) | 0.38 mm |
| Gasket oil inlet | 210023 (147837, 215234, 52231586500) |
| Gasket (oil outlet) | 210021 (148062, 311496) |
| Manufacturer | Honeywell-Garrett |
Ford

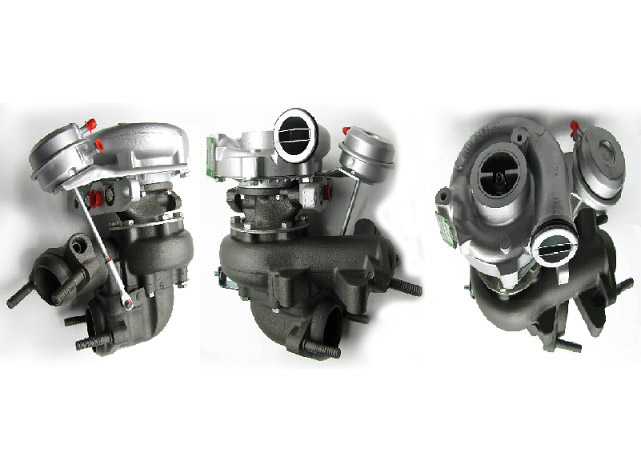

SUPART Ford Mustang, Capri TB0307 Turbo 465564-0006
Applications
1980- Ford Capri 2.3L, V6
1980- Ford Mustang Cobra 2.3L, 4 Cyl
