| Part Number | 176466 |
| Previous Part Number | 014TC2110200, 014TC21102000, 014TC2110210, 014TC21102100, 014TC2110410, 014TC21104100, 100TBC664, 100TBC664S, 1080124R, 176466R, 179515, 179515R, 2N-222, 2N222, 2T-222, 2T222, 40-30188, 4030188, 4307200R1, 476466, 479515 |
| OE number | 1848303C1, 1848303C2, 1848303C3, 8C3Z-6K682-B, 8C3Z-6K682-BA, 8C3Z-6K682-BARM, 8C3Z-6K682-D, 8C3Z-6K682-DA, 8C3Z-6K682-DARM, 8C3Z6K682B, 8C3Z6K682BA, 8C3Z6K682BARM, 8C3Z6K682D, 8C3Z6K682DA, 8C3Z6K682DARM, BWT28866, S8640105R |
| Year | 2007-10 |
| Description | Truck, Industrial, Ford F250/F350/F450/F550, Twin Turbos |
| Engine | V114 Power Stroke, B2V HP stage |
| Displacement | 6.4L, 6400 ccm |
| KW | 261/350 HP |
| RPM Max | 3000 |
| A1 Cardone | 2T-222 |
| Turbo Model | BV70, V2S |
| Manufacturer Part Number (High Pressure) | 176466, 177100, 179514, 179523 |
| High Pressure CHRA | 175416 (179519, 475416, 479519, S175412N)(1000-070-039, 1000070039) |
| Bearing Housing | 175411 (Oil Cooled)(1900011388) |
| Turbine Wheel | 12701205001 (Ind. 69.97 mm, Exd. 62.61 mm, Trm 8.63, 11 Blades) |
| Comp. Wheel | 175417 (Ind. 51.96 mm, Exd. 74.29 mm, Trm 12.85, 7+7 Blades, Superback) |
| Back plate | |
| Heat shield Number | |
| Repair Kit | |
| Nozzle Ring | (3000016074) |
| Electronic Actuator | 176840 (476840, 5900-110-7387, 59001107387, 8C3Z-9J559-ARM, 8C3Z-9J559-BA, 8C3Z9J559ARM, 8C3Z9J559BA) |
| Gasket Kit | GS33566 (8C3Z9T514C, 8C3Z 6N640-B, 1873429C92, 1873429C96, W302511, W302512, 904-263, 904263, 2K220) |
| NOTE | Electronic Smart Remote Actuator |
| Installation Kit | 179618 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
Ford

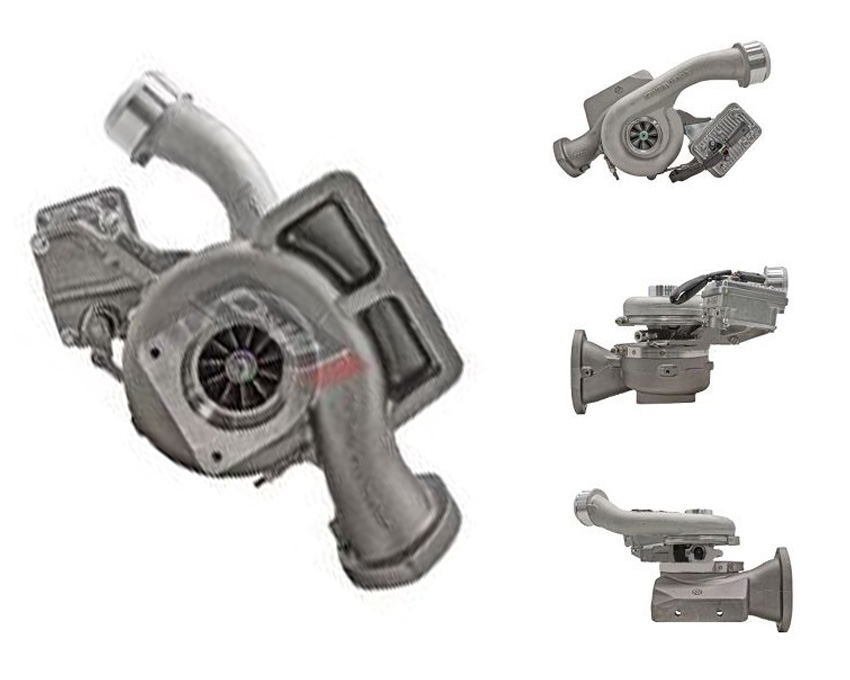

SUPART Ford Navistar (IHC) Truck High Pressure B2V Turbo 176466 R2S
Applications
2007-10 International Industrial, Ford (F250, F350, F450, F550) with V114 Power Stroke
