| Part Number | 452134-5001S |
| Previous Version | 452134-0001, 452134-1, 452134-5002S |
| OE number | 87840733, 87840440, 87840733 |
| Description | Agricultural Tractor F160, Tractor TM1650 |
| Application | 675T EPO23 Tractor, Tractor TM165 |
| CHRA | 4434499-0001 (434499-5001S) |
| Turbo Model | GT3571 |
| Engine | EP023 F160 |
| Model | TM165, 675T EPO23 |
| KW | 140 |
| Fuel | Diesel |
| Angle α (compressor housing) | 120º |
| Angle β (turbine housing) | 0º |
| Bearing Housing | 447535-0007 (Oil cooled)(1900011181B) |
| Turbine Wheel | 434176-0006 (447522-0006)(Ind. 68. mm, Exd. 61. mm, Trm 84, 10 Blades) |
| Comp. Wheel | 434244-0002 (434244-0008)(Ind. 51.2 mm, Exd. 71. mm, Trm 52, 6+6 Blades, Threaded bore type)(1200016594) |
| Back plate | 436040-0001 (1102035300, 1300016138) |
| Heat shield Number | 447553-0006 (2030016048) |
| Repair Kit | 709147-0002 (1102032751, 5000010173) |
| Turbine Housing | 434346-0030 |
| Compressor Cover | 434246-0013 |
| Turbine Housing AR | 1.06 |
| Gasket kit | (1900100267) |
| Gasket (turbine inlet) | 409039-0000 (210022-0000, 409039-0000, 2405022) |
| Gasket (turbine outlet) | 409196-0003 |
| Gasket oil inlet | 210023 (409036-0000, 210023-0000, 55739, 147837) |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) |
| Manufacturer | Garrett |
Ford

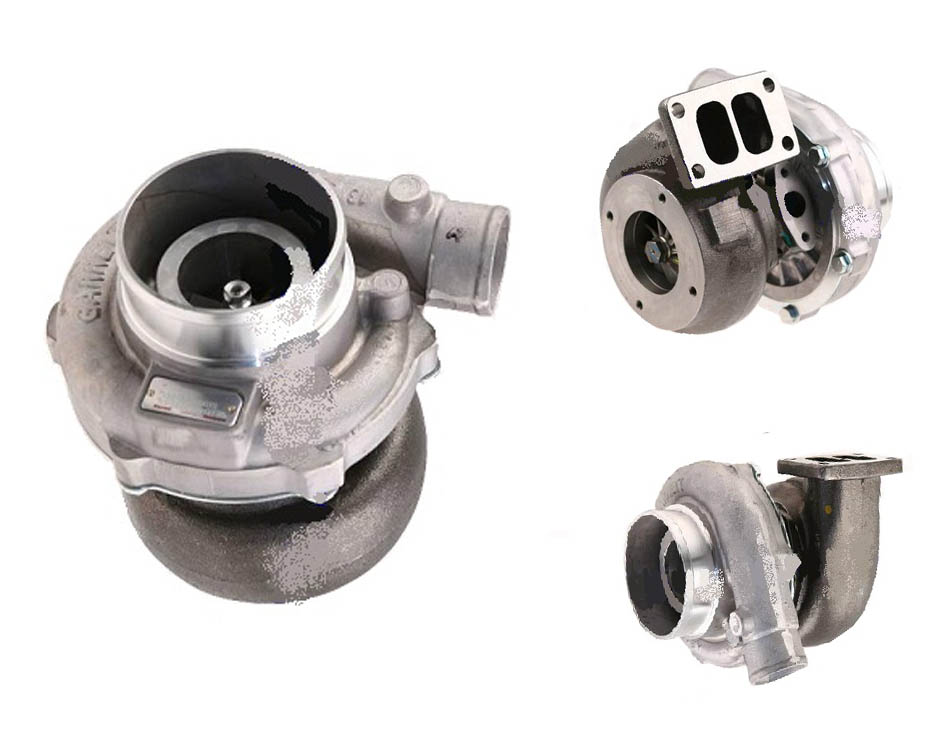

SUPART Ford New Holland Agricultural GT3571 Turbocharger 452134-0001
Applications
1994- Ford New Holland Tractor TM165 With CNH Engine
New Holland Agricultural Tractor F160 TM165 With 675T EP023 Engine
