| Part Number | 452173-5001S |
| Previous Version | 452173-0001, 4521730001, 452173-1 |
| OE number | 87800544 |
| Year | 1995- |
| Description | Ford, New Holland Tractor |
| CHRA | 434499-0004 (434499-5004S) |
| Ford, New Holland Tractor Models | 8670, 8670A, 8770, 8770A |
| Turbo Model | GT3571 |
| Engine | 675TI Genesis |
| Engine Manufacturer | DAF |
| Angle α (compressor housing) | 78º |
| Angle β (turbine housing) | 0º |
| Bearing Housing | 447535-0007 (Oil Cooled)(1900011181B) |
| Turbine Wheel | 434176-0004 (Ind. 67.9 mm, Exd. 62.3 mm, Trm 13.28, 10 Blades)(1102035435, 1100016427) |
| Comp. Wheel | 434244-0001 (Ind. 68. mm, Exd. 62.2 mm, Trm 84, 6+6 Blades) |
| Back plate | 436040-0001 (1102035300, 1300016138) |
| Heat shield Number | 447553-0006 (447553-0005)(2030016048) |
| Repair Kit | 709147-0002 (1102032751, 5000010173) |
| Turbine Housing | 436101-0031 |
| Compressor Cover | 436157-0007 |
| Turbine Housing AR | 0.94 |
| Gasket (turbine inlet) | 409039-0000 (210022-0000, 409039-0000, 2405022) |
| Gasket (turbine outlet) | 409196-0003 |
| Gasket oil inlet | 210023 (409036-0000, 210023-0000, 55739, 147837) |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) |
| Manufacturer | Honeywell-Garrett |
Ford

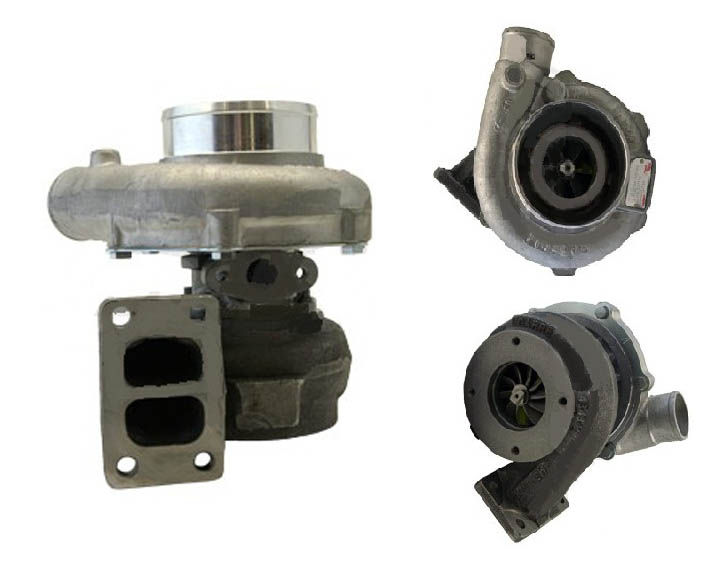

SUPART Ford, New Holland Agricultural GT3571 Turbocharger 452173-0001
Applications
1995- New Holland Agricultural Tractor with 675TI Genesis Engine
