| Part Number | 724652-5001S |
| Previous Version | 724652-0001, 724652-9001, 724652-0007, 724652-1 |
| OE number | EX79517, 79517, AR79517 |
| Year | 2002- |
| Description | Ford Ranger, Navistar |
| CHRA | 703891-0044 (703891-5044S)(1000010337) |
| Turbo Model | GTA2256V |
| Engine | HT HS2.8 , HS2.8 HT, Power stroke 2.8 E2 - HT Euro-2 NAVISTAR-INTERNATIONAL |
| Engine Manufacturer | Ford |
| Displacement | 2.8L, 2800 ccm, 4 Cylinders |
| KW | 95/139 |
| RPM Max | 3800 |
| Fuel | Diesel |
| Bearing Housing | 703881-0001 (722282-0021)(Oil Cooled)(1900011116) |
| Turbine Wheel | 434882-0013 (Ind. 50.29 mm, Exd. 42.49 mm, Trm 8.25, 12 Blades)(1100016275) |
| Comp. Wheel | 702486-0010 (Ind. 38.71 mm, Exd. 55.98 mm, Trm 4.39, 6+6 Blades, Superback)(1200016377) |
| Back plate | 703682-0057 (1300016026B) |
| Heat Shield | 443768-0003 (2030016030) |
| Nozzle Ring Assembly | (3000016014, 1102017832) |
| Repair Kit | 720858-0001 (5000010066) |
| Turbine Housing | 434171-0001 (720858-0001) |
| Compressor Cover | 716391-0008 |
| Actuator | 702559-0013 (2061016612) |
| Turbine Housing A/R | VNT2 |
| Gasket Kit | (2090010005) |
| Gasket (turbine inlet) | 210647 (Inox Steel) |
| Gasket (oil outlet) | 210553 (2455001, Non Metallic) |
| Manufacturer | Honeywell-Garrett |
Ford

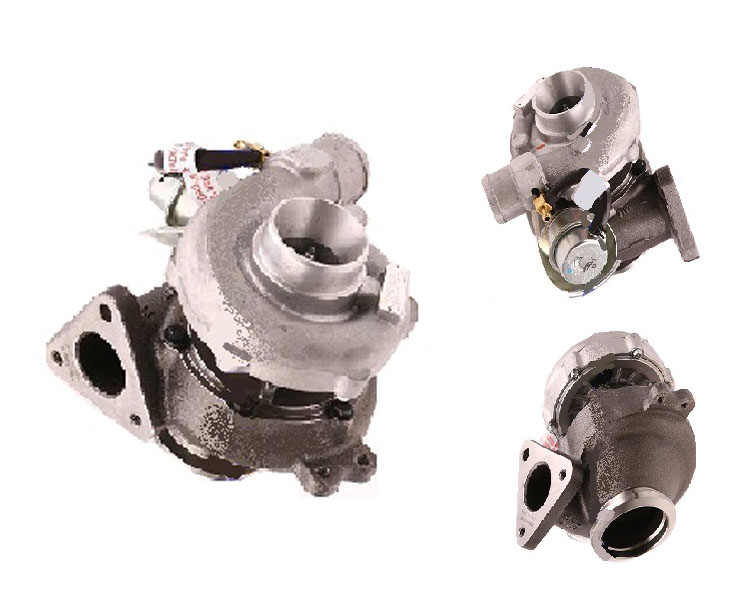

SUPART Ford Ranger, Navistar Int GTA2256V Turbo 724652-0001
Applications
2002- Ford Ranger with Power stroke 2.8L E2 – HT Engine
