| Part Number | 465137-5002S |
| Previous Version | 465137-0002, 465137-0001, 465137-2 |
| OE number | 6177657, 6667101, 89FF6K682BA, 89FF6K6682BA/E |
| Description | Ford Fiesta III, P 100 II, Sierra, Wagon, Hatchback Sierra, P100 Pickup |
| CHRA | 443854-0019 |
| Turbo Model | TB0237 |
| Displacement | 1.8L, 1753 ccm, 4 Cylinders |
| Fuel | Diesel |
| KW | 75 HP |
| Engine | RFA/RFB/RFL |
| Angle α (compressor housing) | 270º |
| Angle β (turbine housing) | 207º |
| Bearing Housing | 431527-0002 |
| Turbine Wheel | 435243-0001 |
| Comp. Wheel | 410450-0012 |
| Back plate | 430735-0001 |
| Heat shield Number | 430871-0002 |
| Repair Kit | 709143-0001 |
| Turbine Housing | 413645-0001 |
| Compressor Cover | 409589-0476 |
| Turbine Housing AR | 0.30 |
| Actuator | 430819-0070 |
| Settings Waste gate (pressure) | 0.85-0.92 bar |
| Settings Waste gate (lift rod) | 0.38 mm |
| Gasket (turbine inlet) | 210256/2405117 |
| Gasket (turbine outlet) | 210257/2405116 |
| Gasket (oil outlet) | 210204/2405120 |
| Manufacturer | Honeywell-Garrett |
Ford

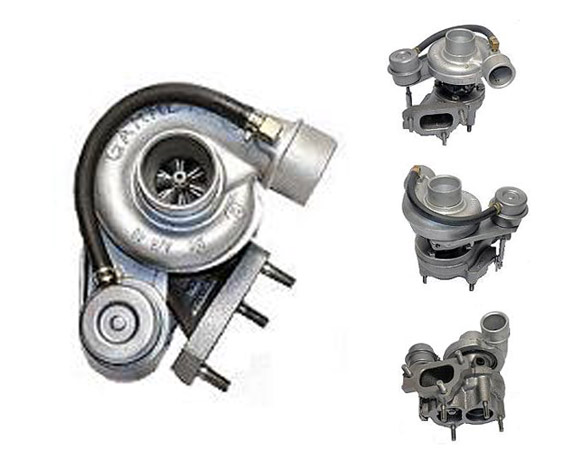

SUPART Ford Sierra, P100 Pickup TB0237 Turbo 465137-0002
Applications
1989-93 Ford Sierra, P100 Pickup RFA/RFB/RFL
