| Part Number | 714716-5003S |
| Previous Version | 714716-0003, 714716-9003, 714716-3, 708618-0004, 708618-0005, 708618-0006, 708618-0007, 709035-0001, 709035-0004 |
| OE number | 1C1Q6K682DB, 1135266 |
| Year | 2000- |
| Description | Transit V185, Commercial |
| Manufacturer Part Number | 53049700001 |
| CHRA | 436731-0001 (436731-5001S, 1102015925) |
| Turbo Model | GT2049S |
| Engine | DuraTorq |
| Engine Manufacturer | Ford |
| Displacement | 2.0L, 2000 ccm, 4 Cylinders |
| KW | 74/100 |
| RPM Max | 3500 |
| Fuel | Diesel |
| Angle α (compressor housing) | 0º |
| Angle β (turbine housing) | 90º |
| Bearing Housing | 700557-0003 (700557-0004) |
| Turbine Wheel | 436504-0004 (Ind. 47. mm, Exd. 38.5 mm, 12 Blades)(1102020438) |
| Comp. Wheel | 436132-0003 (436334-0003, 703925-0003, 706164-0003)(Ind. 34.7 mm, Exd. 49. mm, Trm 50, 6+6 Blades)(1102015402) |
| Back plate | 700593-0003 (703682-0056)(1102015301) |
| Heat shield Number | 434890-0001 (1102015341) |
| Repair Kit | 732252-0001 (1102015756) |
| Thrust Kit | 732248-0003 (1102015762) |
| Turbine Housing | 436736-0006 |
| Compressor Cover | 436614-0024 |
| Turbine Housing AR | 0.31 |
| Actuator | 436806-0002 Pneumatic |
| Settings Waste gate (pressure) | 1.160-1.220 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket exhaust manifold | 210538 (Inox Steel) |
| Gasket (turbine outlet) | 210537 (Inox Steel) |
| Gasket (oil outlet) | 210553 (Non Metallic) |
| Gasket actuator EGR | 210546 (Inox Steel) |
| Replaced by | 802419-5004S |
| Manufacturer | Honeywell-Garrett |
Ford

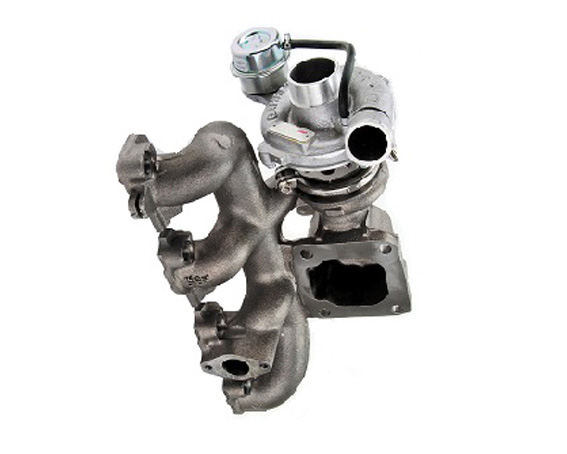

SUPART Ford Transit V185 GT2049S Turbo 714716-0003
Applications
2000- Ford Commercial Transit V185 TDI with DuraTorq Engine
