| Part Number | 465715-5001S |
| Previous versions | 465715-0001, 465715-9001, 465715-1, 465715-5002S, 465715-5003S, 465715-5004S, 465715-0002, 465715-0003, 465715-0004 |
| OE number | E7HN6K682EB, E9HZ6K682A, E7HN6K682EB, E9HZ6K682A, F0HN6K682AA, E9HZ6K682AA, F1HZ6K682B, F1HZ6K682BRM, E7HN-6K682-EB, F0HN-6K682-AA, F1HZ-6K68-2B |
| Description | Ford Brazilian Truck, Cargo, Combine |
| Mahle | TC0260090, 014TC31103000 |
| CHRA | 441398-0066 (441398-9066S) |
| Turbo Model | TA4535 |
| Displacement | 7.8L, 7800 ccm, 6 Cylinders |
| Fuel | Gas |
| KW | 201/270 |
| Angle α (compressor housing) | 90º |
| Angle β (turbine housing) | 76º |
| Bearing Housing | 410310-0001 (410310-0003, 410310-0004)(Oil Cooled)(1900011222, 2030016005) |
| Turbine Wheel | 441064-0003 (Ind. 71.5 mm, Exd. 82. mm, Trm 11.84, 11 Blades) |
| Comp. Wheel | 441793-0009 (44179-0019)(Ind. 59.3 mm, Exd. 84. mm, Trm 5.83, 6+6 Blades, Superback)(1200016178) |
| Back plate | 442752-0001 (1300016014) |
| Heat shield Number | 410366-0003 (410366-0004, 410366-0007)(7C7058)(2030016005) |
| Repair Kit | 468132-0000 (3545829)(1100045754, 5000010045B) |
| Turbine Housing | 445199-0003 (445520-0003) |
| Compressor Cover | 445353-0001 |
| Turbine Housing AR | 1.05 |
| Manufacturer | Honeywell-Garrett |
Ford

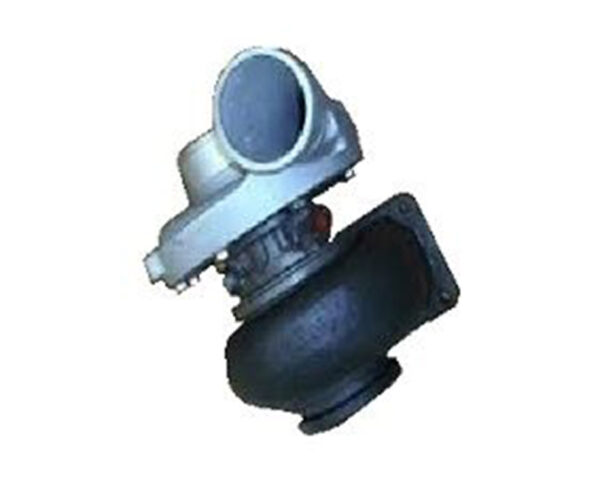

SUPART Ford Truck & Bus ATAC 3530 TA4535 Turbo 465715-0001
Applications
-1991 Ford Brazilian Truck, Bus 7.8L, 6 Cylinders
