| Part Number | 466533-5001S |
| Previous versions | 466533-9001, 466533-0001, 466533-1 |
| OE number | F4TZ6V682BARM, 1819744C91, 1821328C91, 1821329C91, 1816290X92 |
| Year | 1992-94 |
| Description | Ford Truck F-Super Duty Series, Non Power stroke, Navistar, Int Harvester |
| Manufacturer Part Number | F3TZ6K682ARM |
| CHRA | 445074-0010 (445074-5010S) |
| Turbo Model | TC4305 |
| Engine | V8 |
| Displacement | 7.3L 7300 ccm, 8 Cylinders |
| Fuel | Diesel |
| Bearing Housing | 430027-0021 (430027-0051, 430027-0029, 430027-0032, 430027-0025)(186880, 186882, AR63781, 684360C92)(1100030451, 1900011104)(Oil Cooled) |
| Turbine Wheel | 451314-0003 (Ind. 56.5 mm, Exd. 64. mm, Trm 50, 12 Blades)() |
| Comp. Wheel | 409826-0015 (Ind. 58.4 mm, Exd. 70. mm, Trm 70, 6+6 Blades)(1200016136) |
| Back plate | 408045-0034 (630614C91)(408206-0002, 408045-0051, 408045-0006, 4N6863, 104244-0000, 310010, AR54934, 311708C, 197340)(1100040360, 1300016009) |
| Heat shield, Shroud | 409299-0000 (409299-0001)(407565-0000, R43804) (627771C1)(311943)(7N0012) |
| Repair Kit | 707897-0001 (3545830, 200115-0000)(1821338C91, 1821352C91) |
| Turbine Housing | 448807-0001 (1821331C1) |
| Compressor Cover | 409589-0351 (1821330C1) |
| Turbine Housing AR | 0.82 |
| Actuator | N/A |
| Gasket (turbine inlet) | 407294-0001 (3901356, 3709861) (312617)(Inox Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | Garrett |
Ford

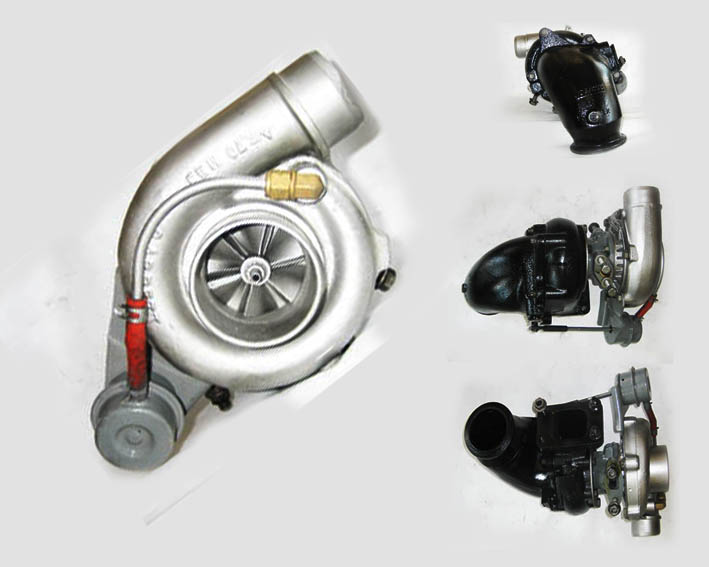

SUPART Ford Truck TC4305 Turbocharger 466533-0001
Applications
1992-94 Ford F-Series Super Duty Trucks 7.3L, 6.9L
1992-93 FORD – F250, F350 – 7.3L V8 DSL, F350 – 7.3L V8 DSL
1992-94 FORD – F250 – 7.3L V8 DSL, F350 – 7.3L V8 DSL
1992-94 FORD – E350 Econoline – 7.3L V8 DSL, Econoline Club Wagon – 7.3L V8 DSL
1992-93 FORD – Motor home – 7.3L V8 DSL
