| Part Number | 176013 |
| Previous Part Number | 176013R, 179514, 179514R,479514, 479515, 479523 |
| OE number | 1848300C92, 1848300C93, 1848303C1, 1848300C94, 1848300C95, 1848300C96, 1848303C2, 8C3Z-6K682-B, 1848303C3, 8C3Z-6K682-A, 1848301C1, 1848300C97, 1848300C98, 5010361R92, P4307200R1, P1848300C96, 8C3Z6K682AARM, 8C3Z6K682DARM |
| Year | 2007-10 |
| Description | Truck, Industrial, Ford F250/F350/F450/F550, Twin Turbos |
| Engine | V114 Power Stroke, B2V HP stage |
| Displacement | 6.4L, 6400 ccm |
| KW | 350 HP |
| RPM Max | 3000 |
| A1 Cardone | 2T-220 |
| Turbo Model | BV70, V2S |
| Manufacturer Part Number (High Pressure) | 176466, 177100, 179514, 179523 |
| High Pressure CHRA | 175416 (179519, 475416, 479519, S175412N)(1000-070-039, 1000070039) |
| Bearing Housing | 175411 (Oil Cooled)(1900011388) |
| Turbine Wheel | 12701205001 (Ind. 69.97 mm, Exd. 62.61 mm, Trm 8.63, 11 Blades) |
| Comp. Wheel | 175417 (Ind. 51.96 mm, Exd. 74.29 mm, Trm 12.85, 7+7 Blades, Superback) |
| Back plate | |
| Heat shield Number | |
| Repair Kit | |
| Nozzle Ring | (3000016074) |
| Electronic Actuator | 176840 (476840, 5900-110-7387, 59001107387, 8C3Z-9J559-ARM, 8C3Z-9J559-BA, 8C3Z9J559ARM, 8C3Z9J559BA) $606.01 |
| Gasket Kit | GS33566 (8C3Z9T514C, 8C3Z 6N640-B, 1873429C92, 1873429C96, W302511, W302512, 904-263, 904263, 2K220) $68.59 |
| Manufacturer Part Number (Low Pressure) | 176013, 177100, 179514, 479514, 177100, 179523, 479523 |
| Low Pressure CHRA | 175412 (179526, 475412, 479526, S175416N, 1332-003-900, 1332003900)(1000070040) |
| Bearing Housing | (Oil Cooled)(1900011387) |
| Turbine Wheel | (Ind. 79.75 mm, Exd. 73.45 mm, Trm 13.38, 10 Blades)(1100016379) |
| Comp. Wheel | 175239 (Ind. 64.44 mm, Exd. 92.32 mm, Trm 13.13, 7+7 Blades, Superback)(1200-016-527) |
| Back plate | |
| Heat shield Number | |
| Repair Kit | (5000040037) |
| High Pressure | 479523, 8C3Z6K682B, 8C3Z6K682BRM (B2 model) |
| Low Pressure | 479515, 8C3Z6K682A, 8C3Z6K682ARM (B3 model) |
| Repair Kit High Pressure | 1640301-2 |
| Repair Kit Low Pressure | 1640301-1 |
| NOTE | Electronic Smart Remote Actuator |
| Installation Kit | 179618 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
Ford

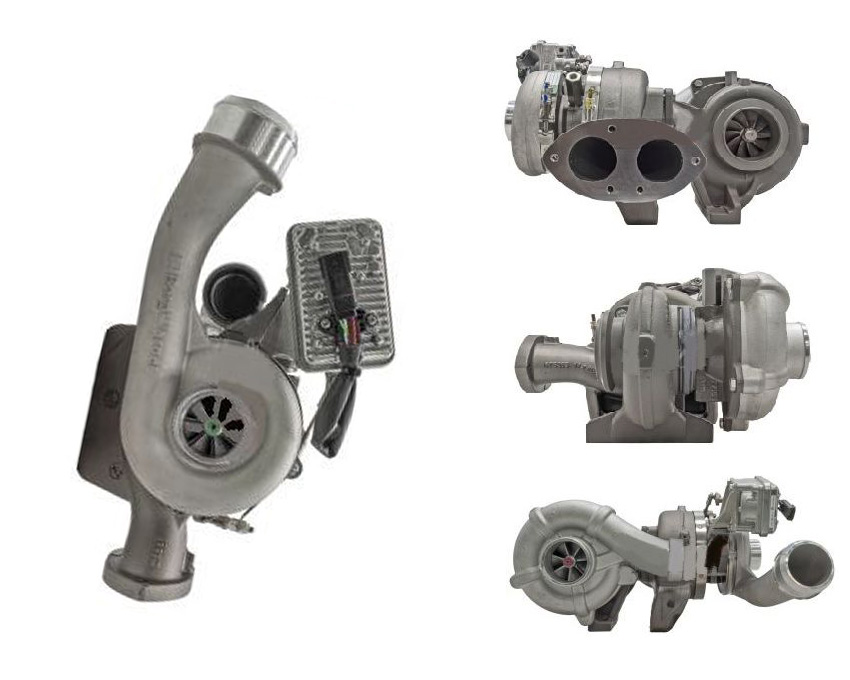

SUPART International, Ford Truck Turbo 176013 R2S
Applications
2007-10 International Industrial, Ford (F250/F350/F450/F550) with V114 Power Stroke
