$2005- MAN, Doosan Infracore, Daewoo (D.H.I) Marine HX35M Turbo 4040919$

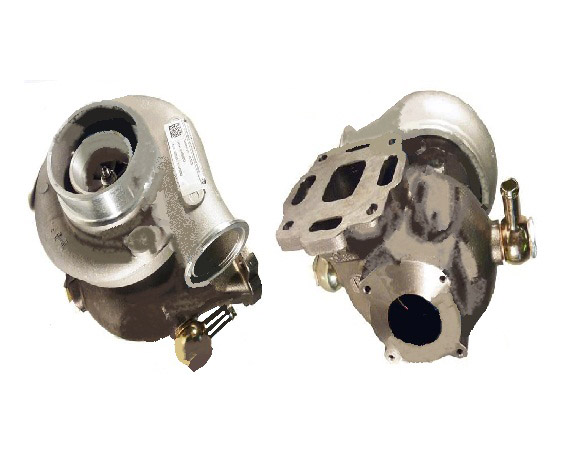

SUPART MAN, Doosan Infracore, Daewoo (D.H.I) Marine HX35M Turbo 4040919

2005- MAN, Doosan Infracore, Daewoo (D.H. I) Marine

Part Number	4040919
Previous Version	4033428
OE Number	65091007107, 65091009107, 65.09100-7107, 65.09100-9107
Description	Doosan GV180 Marine
CHRA	4032342
Manufacturer Part Number	4040920
Turbo Model	HX35M
Engine Manufacturer	Doosan, Daewoo (D.H. I)
Displacement	V8 Cylinders
MOTAIR	336670
BE TURBO	130530
Fuel	Diesel
Angle α (compressor housing)	90°
Angle β (turbine housing)	90°
Bearing Housing (Water Cooled)	3598668
Turbine Wheel	3519336 (3595832, 351933600) (Ind. 70. mm, Exd. 60. mm, 11 Blades) (1152301435)
Comp. Wheel	3599594 (3599650, 359959400) (Ind. 52. mm, Exd. 78. mm, 7+7 Blades, Superback)
Back plate	3530923 (353092300)(1154351300)
Heat shield Number	3519302 (3519304, 351930200) (1152301340)
Repair Kit	4027448 (402744800) (1153035751)(Minor)
Turbine Housing (Water Cooled)	3521298
Compressor Cover	4035120
Gasket Kit	3545769 (215149)
Manufacturer	Holset
