| Part Number | VB130024 |
| Previous versions | NB150042, NB150061, VB130024 |
| OE number | B6E813700, 5T-603, B6E8 |
| V-SPEC. | VJ14 |
| Description | Mazda 323 GTX 4WD, Mercury Capri |
| Year | 1985-93 |
| CHRA | NE920030 (NE920033) |
| Turbo Model | RHB52MW-52002MP12NR5BRKL3711EZ |
| Engine | P316 USA, B6E8(USA) |
| Displacement | 1.6L, 1600 ccm, 4 Cylinders |
| KW | 140 HP |
| Fuel | Gas |
| Engine Manufacturer | MAZDA |
| Angle α (compressor housing) | 0º |
| Angle β (turbine housing) | 10º |
| Bearing Housing | NN133361 (Oil Cooled) |
| Turbine Wheel | NN131502 (NN131619, NN161312, 223T-515)(Ind. 52.47 mm, Exd. 43.05 mm, Trm 5.2, 9 Blades)(1100016320) |
| Comp. Wheel | NN136611 (039T052)(Ind. 36.75 mm, Exd. 52.5 mm, Trm 4.43, 5+5 Blades, Superback) |
| Back plate | NN133021 (64T-002)(1450052300) |
| Heat shield Number | NH365303 (NN137055)(38T013) |
| Repair Kit | NN139921 (NN139921A, NN139922)(509T-530, 115005-0000)(1450052750) |
| Turbine Housing | NN139920 |
| Compressor Cover | NN134972 |
| Turbine Housing AR | 12 |
| Actuator | NH976740 |
| Settings Waste gate (pressure) | 0.735 bar |
| Settings Waste gate (lift shaft) | 2.00 mm |
| Gasket (turbine inlet) | 210276 (2445051) (Stainless Steel) |
| Gasket (turbine outlet) | 210858 (2445285)(Stainless Steel) |
| Gasket (oil inlet) | (1203715)(Paper) |
| Gasket (oil outlet) | 210636 (2445067)(Paper) |
| Gasket Kit | (2505402) |
| Manufacturer | Clover By IHI |
Ford, Mazda

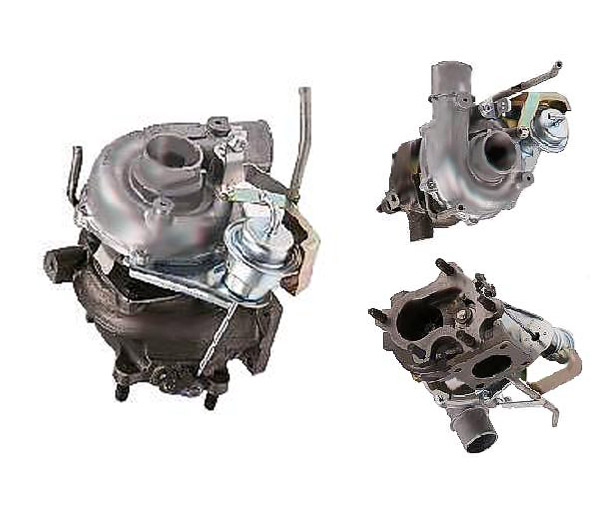

SUPART Mazda 323, Ford RHB52MW Turbo VB130024 VJ14
Applications
1985-93 Mazda 323 GTX 4WD With P316 USA Engine
1991-94 Ford Laser-Capri With P316 mit KAT Engine
1985-92 Mazda 323 III (BF) 1.6L GT turbo With P316 USA Engine
1985-93 Mazda 323 III Hatchback (BF) 1.6L GT Turbo (BF1) With P316 USA Engine
1987-92 Mazda 323 III Hatchback (BF) 1.6L GT Turbo 4WD (BF2) With P316 USA Engine
