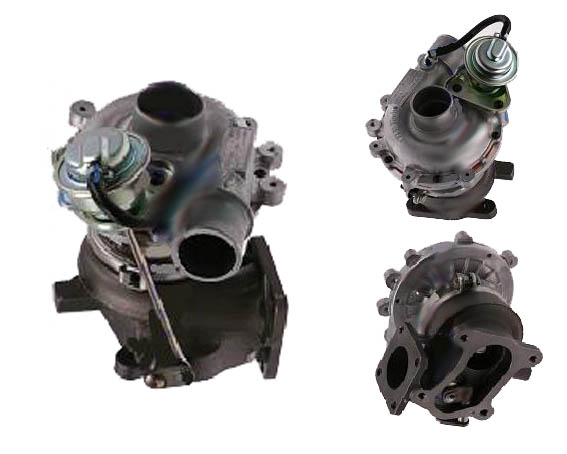

| Part Number | VI430089 |
| Previous versions | VA430089, VA430090, VB430089, VB430090, VC430089, VC430090, VD430090, VE430090, VB40013 |
| OE number | WL84.13.700 |
| V-Spec. | VJ33 |
| Description | Mazda J97A, B-Series, Ford Ranger |
| CHRA | VCX50024 (1000040119) |
| Turbo Model | RHF5-70003P12NHBRL3730CEZ |
| Vehicle OE No | XN349G348AB, WL-84, WL-85, WL84, WL85, WL85A, WL85C |
| Engine | 115 J97A, J97A, WLT |
| Displacement | 2.5L, 2500 ccm, 4 Cyl. |
| Fuel | Diesel |
| Power | 109/118 HP |
| Engine Manufacturer | MAZDA |
| Angle α (compressor housing) | 270º |
| Angle β (turbine housing) | 20º |
| Bearing Housing | (Water Cooled)(1900011215) |
| Turbine Wheel | (Ind. 44.80 mm, Exd. 40.25 mm, 8 Blades)(1100016279) |
| Comp. Wheel | (Ind. 36.44 mm, Exd. 52.52 mm, 5+5 Blades, Superback)(1200016340) |
| Back plate | (1300016102) |
| Heat shield Number | (2030016082B) |
| Repair Kit | NH459801 (NZ852748, 2445094)(5000080009) |
| Turbine Housing | NH459109 |
| Compressor Cover | NH453322 |
| Actuator | NH961511 (2061016580) |
| Turbine Housing AR | 12 |
| Gasket (turbine inlet) | 210276 (2445051)(Metal) |
| Gasket (turbine outlet) | 210650 (2445330)(Metal) |
| Gasket (oil outlet) | 210636 (2445067)(Paper) |
| Gasket (oil inlet) | (1203215, 1203715) |
| Gasket (Water) | (1203216) |
| Gasket Kit | 215278 (2505513) |
| Manufacturer | IHI |
