| Part Number | 49177-02700 |
| Previous versions | 4917702700, 49177-02702 |
| OE Number | MD192600 |
| Description | Galant, Space Runner |
| CHRA | 49177-09060 (4917709060) |
| Turbo Model | TDO4S-09G/3 |
| Engine | 4D68(I/C) |
| Engine Manufacturer | Mitsubishi |
| Displacement | 2.0L, 1998 ccm, 4 Cylinders |
| Fuel | Diesel |
| KW | 82 HP |
| Bearing Housing | 49177-25540 (49177-25520)(1401635462, 1900011217)(Oil Cooled) |
| Turbine Wheel | 49177-30200 (49177-30120, 49177-30130)(Ind. 47.19 mm, Exd. 40. mm, Trm 6.45, 12 Blades)(1401404437, 1100030029) |
| Comp. Wheel | 49177-43200 (Ind. 36.33 mm, Exd. 49. mm, Trm 20, 6+6 Blades, Flatback) |
| Back plate | 49173-22500 |
| Heat shield Number | 49170-19100 |
| Repair Kit | 49177-80410 (49177-80400) |
| Turbine Housing | 49377-15792 |
| Compressor Cover | 49377-52410 |
| Turbine Housing AR | 3.0 |
| Actuator | 49177-18620 |
| Gasket (turbine inlet) | 210243 (Paper) |
| Gasket (oil outlet) | 210633 (Inox Steel) |
| Replaced By | 49177-02701, 49177-02702 |
| Manufacturer | Mitsubishi |
Mitsubishi

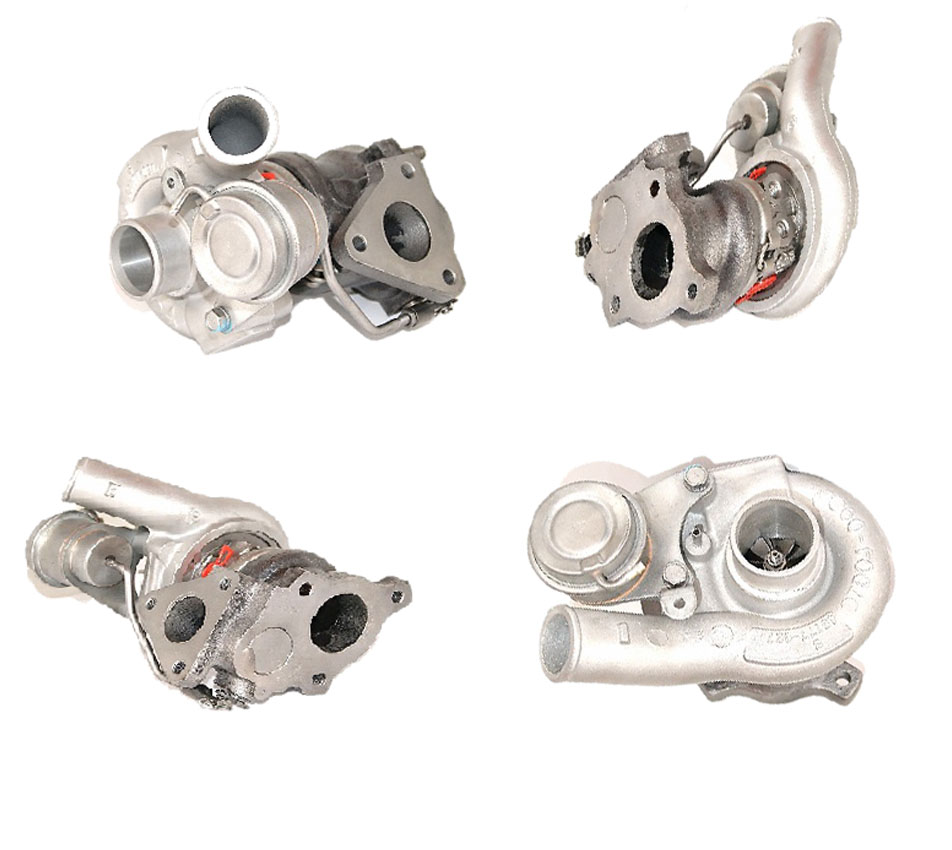

SUPART Mitsubishi Galant, Space Runner TDO4S-09G Turbo 49177-02700
Applications
Mitsubishi Galant, Space Runner with 4D68 Engine
