| Part Number | VB420088 |
| Previous Version | VA420088, VC420088, VD420088, VF420088 |
| OE number | 1515A029 |
| Year | 2006- |
| V-Spec. | VT10 |
| Description | Truck L200 |
| Application | W200 |
| CHRA | VBX40085 (1450040911, 1000040133) |
| Turbo Model | RHF4-660011P10.5NHBRL377CEZ |
| Engine Model | 4D5CDI |
| Engine Manufacturer | Mitsubishi |
| Displacement | 2.5L, 2477 ccm, TD |
| KW | 98/133 |
| Fuel | Diesel |
| Angle α (compressor housing) | 120º |
| Angle β (turbine housing) | 251º |
| Bearing Housing | (Oil Cooled)(1450040462, 1900011286) |
| Turbine Wheel | (Ind. 36.15 mm, Exd. 45.6 mm, Trm 7.2, 9 Blades)(1450040443, 1100016308) |
| Comp. Wheel | (Ind. 37.4 mm, Exd. 50. mm, Trm 3.75 mm, 6+6 Blades, Superback)(1450040411, 1200016425) |
| Back plate | (1450040303, 1800016049) |
| Heat shield Number | (2030016132) |
| Repair Kit | NH439809 (1450040753, 5000080025) |
| Turbine Housing AR | 10.5 |
| Actuator | (2061016685) |
| Gasket Kit | (1900100548, 2090010057M) |
| Replaced By | VF420088 |
| Manufacturer | IHI |
Mitsubishi

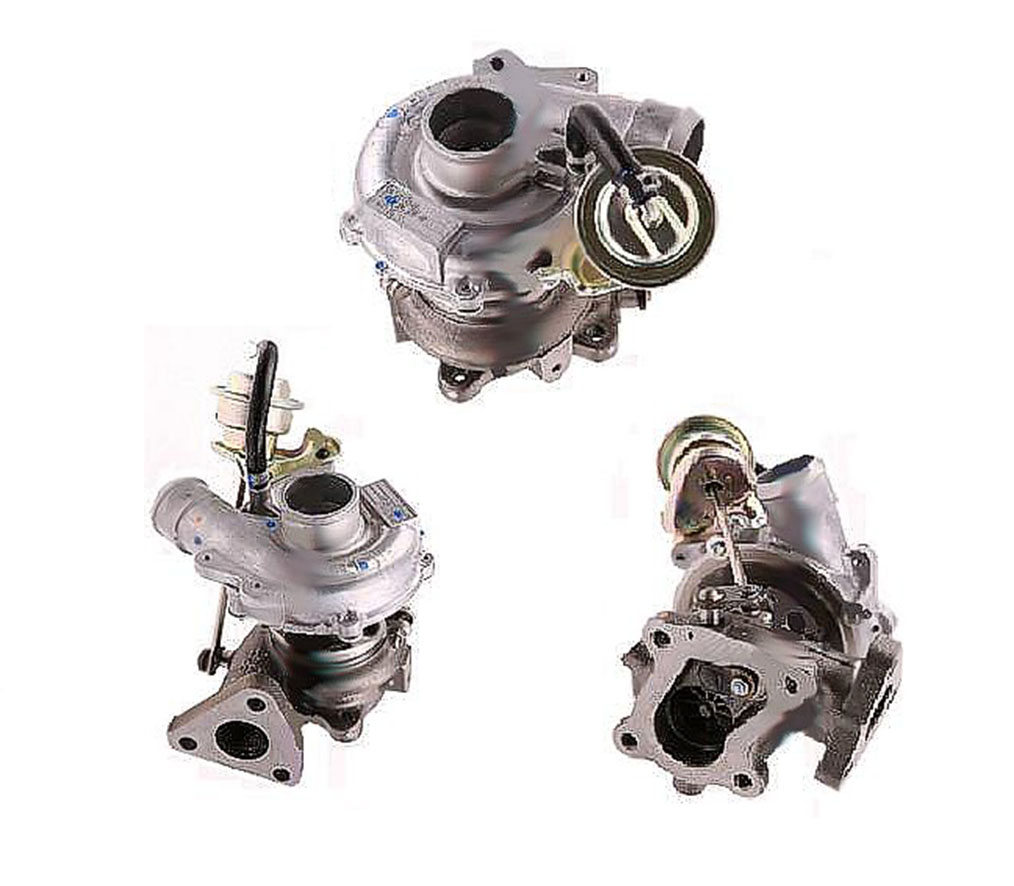

SUPART Mitsubishi L200 Truck RHF4 Turbo VB420088 VT10
Applications
2006- Mitsubishi L200, W200 with 4D5CDI Engine
