| Part Number | 734204-5001S |
| Previous Version | 734204-0001, 734204-1, 734204-5001 |
| OE Number | ZY34027402, 1390067G10, 13900-67G10 |
| Year | 2002- |
| Description | Grand Vitara 16V HDI |
| CHRA | 433289-0134 |
| Turbo Model | GT1549S |
| Engine | LHK96JG22, DW10ATED4, DW10ATED 4 |
| Engine Manufacturer | Subaru |
| Displacement | 2.0L, 1997 ccm, 4 Cylinders, 16V |
| KW | 80/109/110 HP |
| Fuel | Diesel |
| Angle a (compressor housing) | 295.4º |
| Angle ß (turbine housing) | 207.1º |
| Bearing housing | 433275-0002 |
| Turbine Wheel | 707669-0009/707669-0010 |
| Comp. Wheel | 702489-0006 |
| Back plate | 436399-0002 |
| Heat Shield | 434302-0001 |
| Repair Kit | 732252-0001 |
| Turbine Housing | 433466-0020 |
| Compressor Cover | 701057-0007 |
| Actuator | 703785-0015 |
| Settings Waste gate (pressure) | 0.245/0.450 bar |
| Settings Waste gate (lifting rod) | 3.0-4.7 mm |
| Gasket (turbine inlet) | 210500 |
| Gasket (turbine outlet) | 210559 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Honeywell-Garrett |
Peugeot

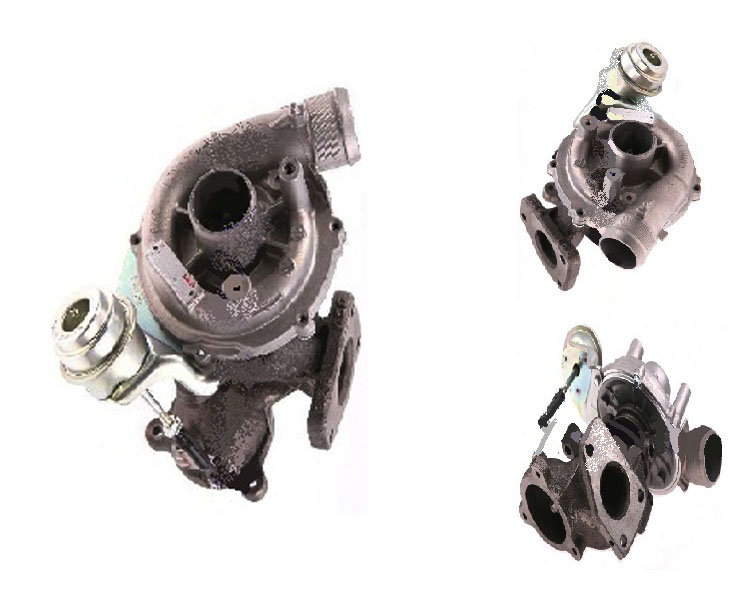

Suzuki PEUGEOT GT1549S SUPART Turbo 734204-0001
Applications
2002-09 Suzuki Grand Vitara with LHK96JG22, DW10ATED4 Engine
