| Part Number | 17201-30030 |
| OE Number | 1720130030, 17201-30030 |
| Year | 2001- |
| Description | Toyota HIACE, Land Cruiser, Hilux D4D |
| CHRA | 17202-30030 (1500316900, 1000060120) |
| Turbo Model | CT10, CT9 |
| Engine Manufacturer | Toyota |
| Displacement | 2.5L, 2494 ccm, 4 Cylinders |
| Engine | 2KD-FTV |
| Power | 102 HP |
| Fuel | Diesel |
| Bearing Housing | (Oil Cooled)(1500316450, 1900011267) |
| Turbine Wheel | 17290-30120 (Ind. 45.89 mm, Exd. 38. mm, Trm 6.55, 9 Blades)(1500316431, 1100016280) |
| Comp. Wheel | 17298-30120 (Ind. 35.96 mm, Exd. 50.95 mm, Trm 4.77, 6+6 Blades, Superback)(1500316400, 1200016390) |
| Back plate | (1500316300, 1300016056B) |
| Heat Shield | (1500316340, 2030016121) |
| Repair Kit | (1500316755, 5000070023) |
| Gasket (turbine inlet) | 210354 (Inox Steel) |
| Gasket (turbine outlet) | 210355 |
| Gasket (oil inlet and outlet) | 210234 (Paper)(1500320790) |
| Gasket (water inlet and outlet) | 210233 (Paper)(1500320791) |
| Gasket Kit | 17230-39085 (2090505196) |
| Manufacturer | Toyota |
Toyota

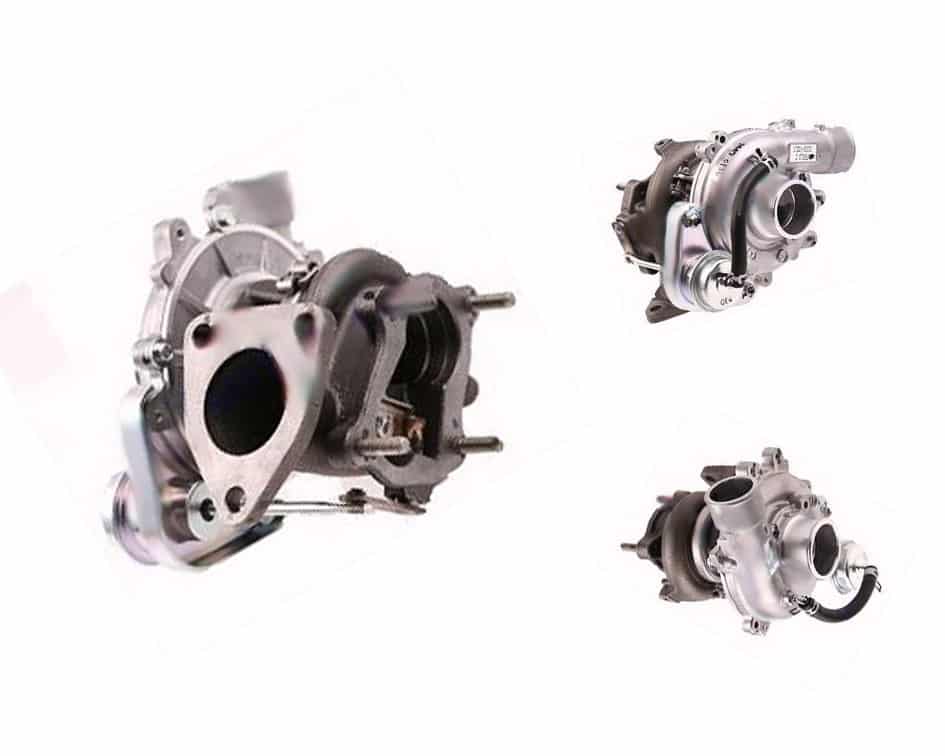

Toyota HIACE, Land Cruiser SUPART CT9 Turbo 17201-30030
Applications
2001- Toyota HIACE, Land Cruiser 2KD-FTV
