| Part Number | 465577-5001S |
| Previous Version | 465577-0001, 53149887009, 53149887014, 465577-0053, 465577-1 |
| OE Number | 028145701A, 028145701AX, 028145701AV, 028145703BX, 028145703BV, 028145703B, 028145703E, 28145703B |
| Year | 1990- |
| Description | Volkswagen Golf III, Passat B3, Vento, Seat Cordoba, Ibiza II |
| CHRA | 443854-0047 (443854-5047S) |
| Turbo Model | TB0261 |
| Engine | AAZ, Umwelt |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm, 4 Cylinders |
| KW | 55/75 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 349.5º |
| Angle β (turbine housing) | 315º |
| Bearing Housing | 435350-0003 |
| Turbine Wheel | 435243-0006 |
| Comp. Wheel | 410450-0012 |
| Back plate | 432280-0001 |
| Heat Shield | 445118-0001/723421-0001 |
| Repair Kit | 701813-0001 |
| Turbine Housing | 432660-0005 |
| Compressor Cover | 409589-0249 |
| Turbine Housing AR | 0.35 |
| Actuator | 432613-0008 |
| Settings Waste gate (pressure) | 0.760-0.820 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket (turbine inlet) | 210244 |
| Gasket (turbine outlet) | 210225 |
| Manufacturer | Honeywell-Garrett |
| Condition | Rebuilt |
Volkswagen

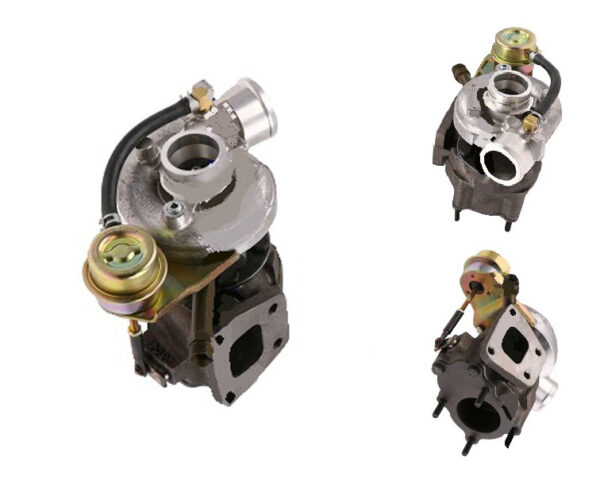

Volkswagen, Seat TD TB0261 SUPART Turbo 465577-0001
Applications
1990-1994 Seat Cordoba, Ibiza II 1.9L TD Engine AAZ
1990-1996 Seat Toledo I 1.9L TD Engine AAZ
1990-1993 Volkswagen Golf III, Passat B3, Vento 1.9L TD Engine AAZ
