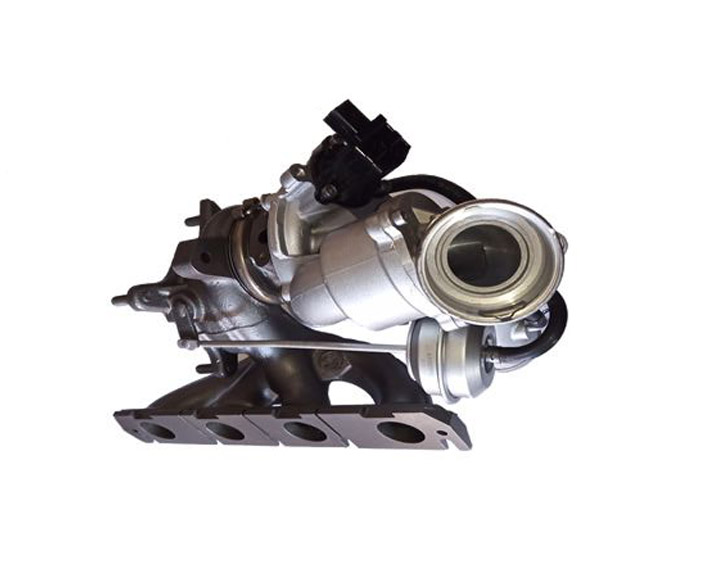

| Part Number | 06J145713F |
| Previous Versions | 06J145713F, 06J-145-713-A, 06J-145-713-D, 06J145689G, 06J145704C, 06J145704H, 06J145713A, 06J145713D |
| OE Number | 06J145713F, 06J-145-713-A, 06J-145-713-D, 06J145689G, 06J145704C, 06J145704H, 06J145713A, 06J145713D |
| Year | 2011- |
| V-SPEC | JH5 |
| Description | Volkswagen (VW), |
| Turbo Model | RHF5 |
| CHRA | CHRA06J145702K (1000040148, 1450050909) |
| Engine | 2.0L CCTB, CCTA, CBFA, CCZA, CCZB |
| Engine Manufacturer | Volkswagen |
| Displacement | 2.0L, 1984 ccm |
| Fuel | Diesel |
| KW | 155/211 HP |
| Bearing Housing | (Water Cooled)(1450050462) |
| Turbine Wheel | (Ind. 45.08 mm, Exd. 39.85 mm, Trm 5.38, 8 Blades)(1450050443, 1100016279B) |
| Comp. Wheel (hipped) | (Ind. 39.37 mm, Exd. 52.27 mm, Trm 6.8, 6+6 Blades, Superback) |
| Back plate | (1450050305) |
| Heat shield Number | (1450050345) |
| Repair Kit | (1450050753) |
| Diverter Valve | 7.02901.05.0 |
| Listed Price | |
| Manufacturer | IHI |
| Condition | Rebuilt |
Applications
2009-11 Volkswagen (VW) Eos with (EOS) CCTA, CBFA, CCZA,CCZB Engine
2012- Volkswagen (VW) Eos 2.0L with CCTA, CBFA, CCZA,CCZB Engine
2008-12 Volkswagen (VW) Golf with (D / GO), CBFA,CCTA Engine
2009-12 Volkswagen (VW) Golf 2.0L with (D / GO), CBFA,CCTA Engine
2010-12 Volkswagen (VW) Golf Variant with (D / GO), CBFA,CCTA Engine
2010-12 Volkswagen (VW) Golf Variant 2.0L with (D / GO), CBFA,CCTA Engine
2008-12 Volkswagen (VW) GTI with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2009-12 Volkswagen (VW) GTI 2.0L with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2005-12 Volkswagen (VW) Jetta with (MEX / JEM) CCZA Engine
2008- Volkswagen (VW) Jetta 1.8L Turbo with (MEX / JEM) CCZA Engine
2009-10 Volkswagen (VW) Jetta 2.0L with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2009- Volkswagen (VW) Jetta Variant 2.0L with (MEX / JEM) CCZA Engine Engine
2009-11 Volkswagen (VW) Passat with (MEX / JEM) CCZA Engine Engine
2009-11 Volkswagen (VW) Passat 2.0L with (MEX / JEM) CCZA Engine Engine
2009-12 Volkswagen (VW) Passat CC 2.0L with (MEX / JEM) CCZA Engine Engine
2008-12 Volkswagen (VW) R32 with (MEX / JEM) CCZA Engine Engine
2009-12 Volkswagen (VW) R32 2.0L with (MEX / JEM) CCZA Engine Engine
2008-12 Volkswagen (VW) Rabbit with (MEX / JEM) CCZA Engine Engine
2009-12 Volkswagen (VW) Rabbit 2.0L with (MEX / JEM) CCZA Engine Engine
