| Part Number | 3530641 |
| Previous Version | 3530701, 3534561 |
| OE number | 8112300, 8112302, 866665, 1556163, 8112300 |
| Description | Volvo F16 Truck (Class 3-8) 500/515 HP |
| CHRA | 3545491 (3575154) |
| Turbo Model | H3B-0980AR/B36S1, H3B |
| Engine | TD160, TWD1630G, TD163ES |
| Engine Manufacturer | Volvo |
| Associated product No | 3530641D |
| Displacement | 16.0L, 16000 ccm |
| KW | 368/279/515 |
| Fuel | Diesel |
| Fuel | Diesel |
| Angle α (compressor housing) | 307° |
| Angle β (turbine housing) | 165° |
| Bearing housing | 3530625 (353062500, 3534193)(Oil Cooled) |
| Turbine Wheel | 3521731 (352173100)(Ind. 96.23 mm, Exd. 81.7 mm, 12 Blades) |
| Comp. Wheel | 3526175 (4035398, 2843580, 4045209)(Ind. 71.75 mm, Exd. 109. mm, Trm 6.68, 8+8 Blades, Superback) |
| Back plate | 3531917 (59618, 3759618, 3500710, 166084, 168084, 183472, 143144-0000)(1150704300) |
| Heat shield Number | 3519155 (351915500) |
| Repair Kit | 3545346 (3545345, 4027880) |
| Gasket (turbine inlet) | 409038-0000 (132040, 1S4295, 202873, 205396, 9749, 3500683, 210017-0000)(1900000003) |
| Gasket (turbine outlet) | 210239 |
| Gasket oil inlet | 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035) |
| Gasket (oil outlet) | 210018 (409267-0002, 1S4810, 3519763, 3500682, 3709738, 9738, 9988, 201048, 129120)(1900000025) |
| Manufacturer | HOLSET |
Volvo

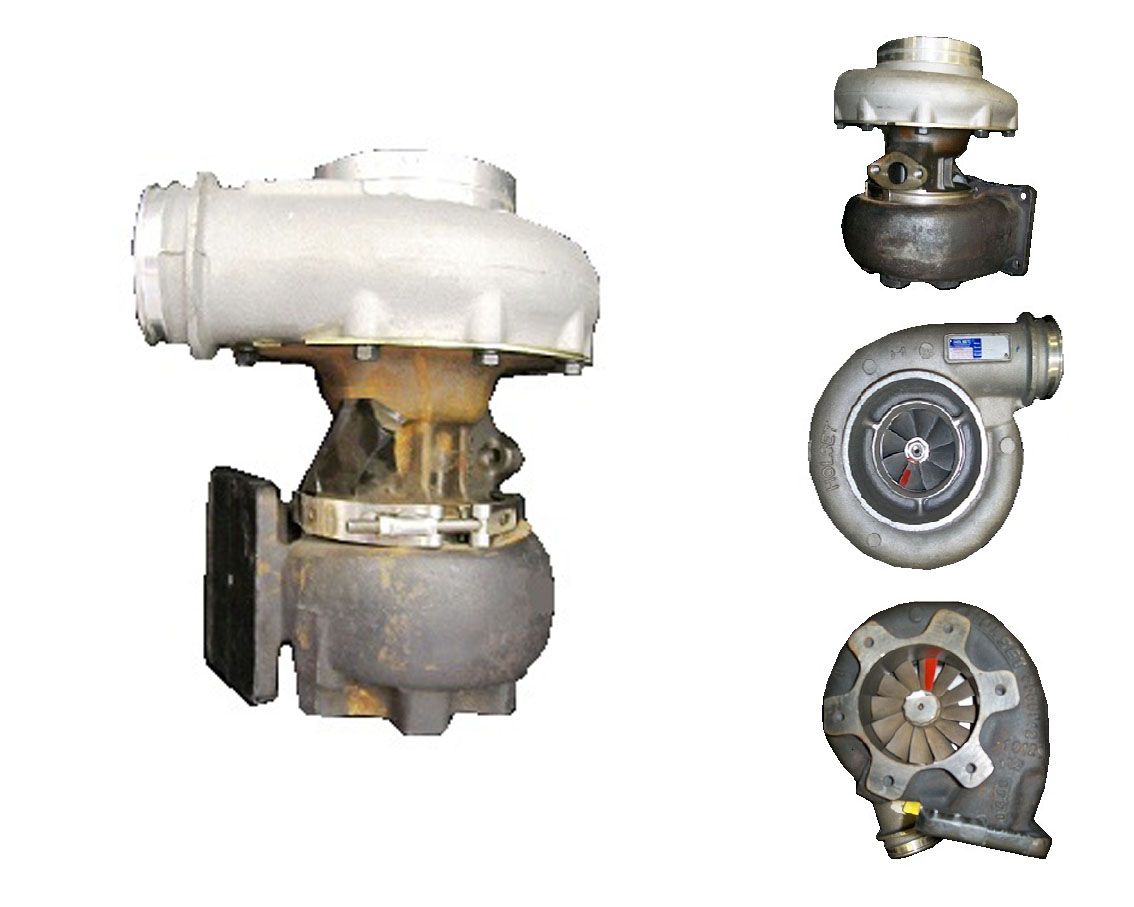

Volvo F16 Truck H3B SUPART Turbocharger 3530641
Applications
1991-03 Volvo Truck F16 with TD160, TWD1630G Engine
