| Part Number | 4049337 |
| Previous Version | 4049338, 3533544, 3537840, 3537840-D, 3538716, 3538716-D, 3575237, 3591077-D, 4049338 |
| OE number | 8113407, 3165219, 8148987, 425720, 1677725, 8112921, 8148873, 8112637, 4049337 |
| Description | Truck FH12 D12A, FH12 Truck, FM12 Truck |
| CHRA | 4027027 (1153055902) |
| Turbo Model | HX55-E9861E/T25VB15A, HX55 |
| Engine | D12C, D12A/C Euro-3 |
| KW | 338/430 |
| Displacement | 11.95L, 11950 ccm, 6 Cylinders |
| Fuel | Diesel |
| Engine Manufacturer | Volvo |
| Angle α (compressor housing) | 270° |
| Angle β (turbine housing) | 180° |
| Bearing Housing | 3590231 (4039258) |
| Turbine Wheel | 3533543 (4038182)(Ind. 86. mm, Exd. 80. mm, 12 Blades)(1153055435) |
| Comp. Wheel | 4041666 (Ind. 65. mm, Exd. 99. mm, 7+7 Blades) |
| Back plate | 3528096 (1153055300) |
| Heat Shield | 3529846 (3533038)(1153055340) |
| Repair Kit | 3580762 (3575181)(1153055750) |
| Turbine Housing | 4039644 |
| Compressor Cover | 4050602 |
| Gasket (turbine inlet) | 409038-0000 (210017-0000) |
| Gasket oil inlet | 210023 (409036-0000, 210023-0000, 55739, 147837) |
| Gasket (oil outlet) | 210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807) |
| Substitutive | 452164-5001S, 4037181-D |
| Manufacturer | HOLSET |
Volvo

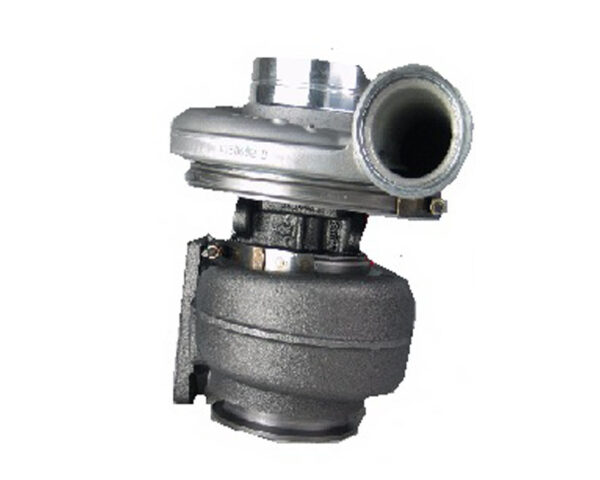

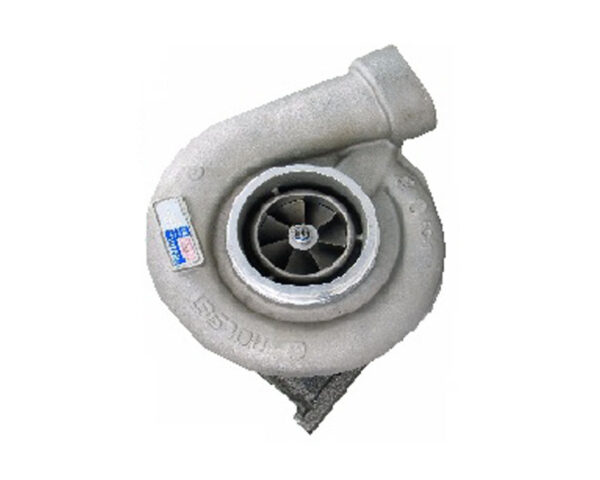

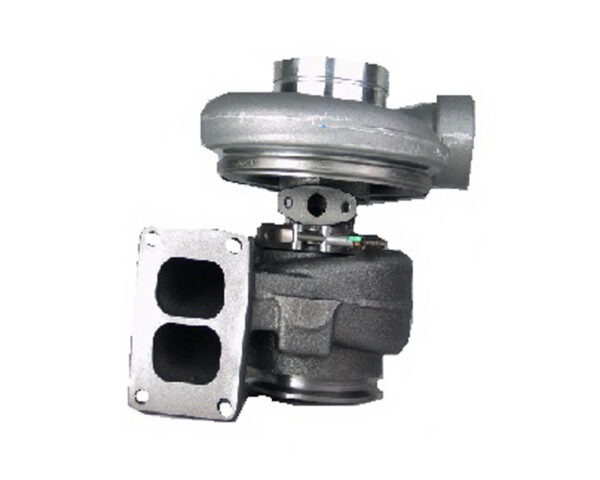

Volvo FH12 Truck, FM12 Truck HX55 SUPART Turbo 4049337
Applications
1993-95 Volvo Truck FH12 /FL12 with D12C Engine
