| Part Number | 466818-5005S |
| Previous Version | 466818-0005 |
| OE number | 422936 |
| Description | Volvo Truck FL10 |
| CHRA | 441398-0057 (441398-5057S) |
| Turbo Model | TA45 |
| Angle α (compressor housing) | 338º |
| Angle β (turbine housing) | 0º |
| Bearing Housing | 410310-0001 (410310-0004)(Oil Cooled) |
| Turbine Wheel | 441064-0002 (94410640002)(Ind. 82. mm, Exd. 68.1 mm, Trm 69, 11 Blades) |
| Comp. Wheel | 441793-0015 (Ind. 62.94 mm, Exd. 83.97 mm, 6+6 Blades, Superback) |
| Back plate | 442752-0001 |
| Heat shield Number | 410366-0003 |
| Repair Kit | 468132-0000 (3545829)(1100045754) |
| Turbine Housing | 441041-0013 |
| Compressor Cover | 443214-0007 |
| Turbine Housing AR | 1.22 |
| Gasket (turbine inlet) | 409123-0002 (310694)(Inox Steel) |
| Gasket (turbine outlet) | 210221 (Stainless Steel) |
| Gasket oil inlet | 210019 (409266-0003, 409266-0004, 210019-0000, 201049, 129119, 409266-0003, 3819900, 9737, 1S6595)(Paper)(1900000035) |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(Paper) |
| Replaced By | 466818-0003 |
| Manufacturer | Honeywell-Garrett |
Volvo

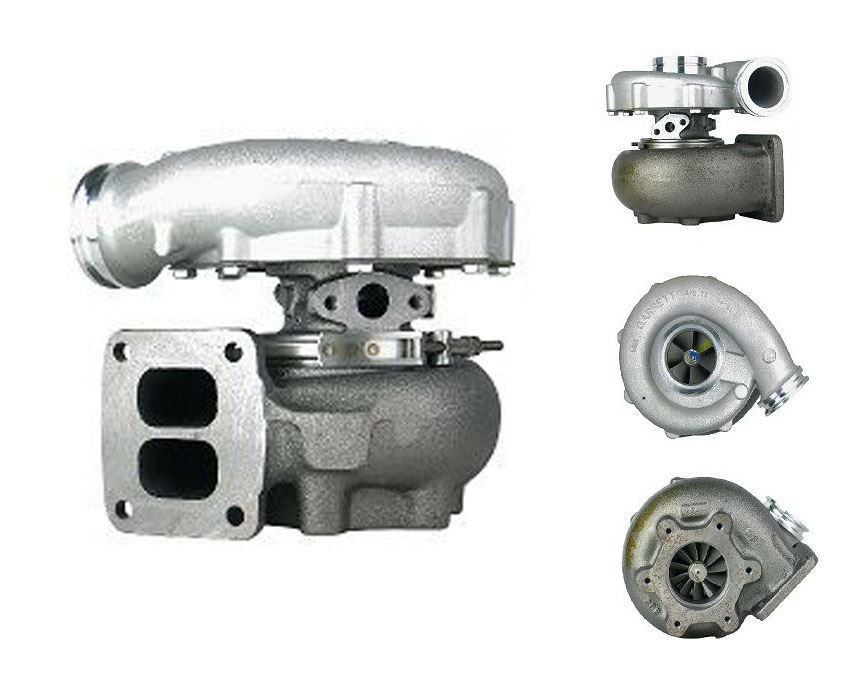

Volvo FL10 Truck TA45 SUPART Turbo 466818-0005
Applications
Volvo Truck FL10 with TD102F Engine
