| Part Number | 3776805 |
| Previous Version | 2835095, 2840775, 3769171, 3773435, 4031002, 403100200, 403100200H, 4031002H, 4031002HX, 4031003, 403100300, 4031003H, 4031205, 403120500H, 4031205H, 4031205HX, 4031239, 40312NX, 40312RX, 40313HX, 4046514, 4046515, 4046516, 4046517, 4046518, 4047365, 4047366, 4047367, 4047368, 4047369, 4048068, 4048069 |
| OEM Customer Number | 2835093, 2835094, 2835095, 2835096, 2835097, 2840771, 2840773, 2840775, 2840777, 2840779, 3769170, 3769171, 3769180, 3769181, 3769182, 3769182RX, 3773434, 3773435, 3776801, 3791468, 3791469, 3791493, 3791494, 3791495 |
| OEM Supplied Number | 20941931, 20941933, 21012875, 21012876, 21012877, 21080078, 21080079, 21080080, 21178032, 21178033, 21178034, 21424404, 21424405, 21424406, 21424419, 21592749, 21592750, 21592751, 21597914, 22014294, 22014295, 22014296, 22883059, 22883060 |
| Year | 2006-12 |
| Description | Volvo, Mack Truck, Mack Volvo D11F 325 HP Mack MP8 405 HP |
| Manufacturer Part Number | 4031003, 5328825, 5328826, 5353325, 5353326, 5355445, 5355446, 5355450, 5355451, 5355452, 5451879, 85003608, 85013027, 85013028, 85013029, 85013053, 85021420, 85110393, 85115989, 85115990, 85115991, 85123286, 85123288, 85123290, 85136170, 85136171, 85136180, 85151099, 85213710 |
| CHRA | 4034328 (4034328H) |
| Turbo Model | HE400VG, HE431VE |
| Engine | MD11 US07 |
| Engine Manufacturer | Volvo |
| Displacement | 13.0L, 1300 ccm |
| Fuel | Diesel |
| KW | 325/440 HP |
| Angle α (compressor housing | 127/234° |
| Angle β (turbine housing) | 166/173° |
| Service Kit | (Major)(1154400755) |
| Nozzle Ring Assembly | |
| Turbine Housing AR | VGT |
| Actuator (Electronic) | 4034114 (21517180, 21754439, 28084716, 28209382, 2837207, 3780595, 3783399, 3787586, 3787591, 3789659, 3789659H, 3789662, 4032170, 4032798, 403411400, 4034114H, 4047112, 5359093, 535909300, 535909300H, 5359093H, 599-5002, 5995002, 85013730, 85013731)(12 Volts) |
| Gasket Kit | 4032585 |
| Gasket (oil inlet) | 5264570 (3899343, 4938639) |
| Gasket (turbine inlet) | 3755843 |
| NOTE | W/O Actuator |
| Manufacturer | HOLSET |
Volvo

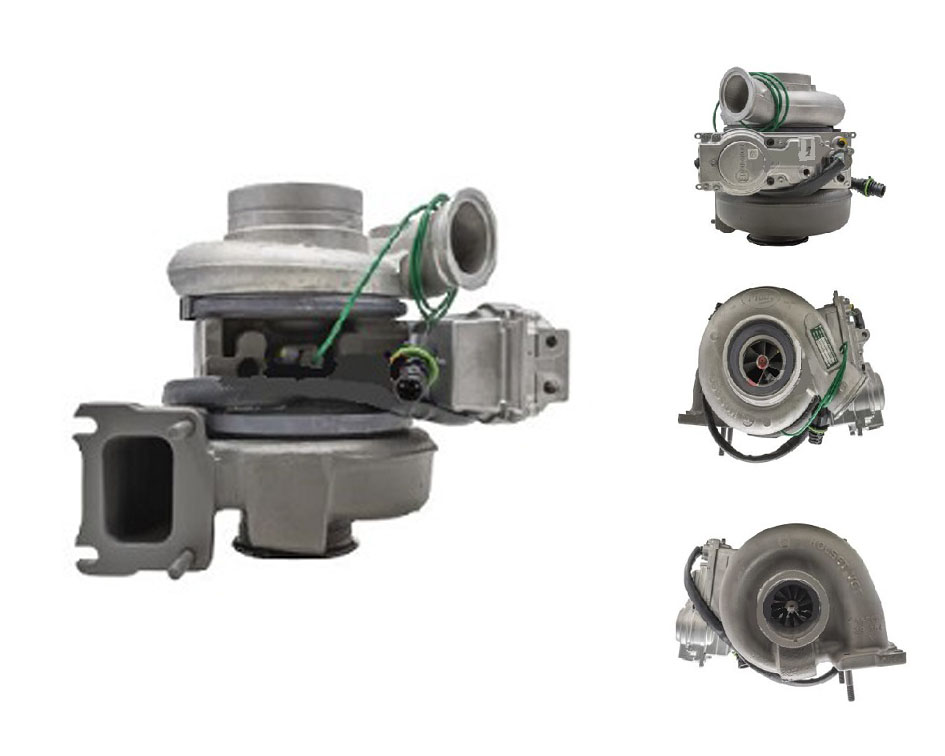

Volvo, Mack Truck HE431VE SUPART Turbocharger 3776805
Applications
2006-12 Volvo, Mack Truck with MD11 US07 Engine
