| Part Number | 5324761 |
| Previous versions | 2841023, 3786696, 378669600, 3786696H, 3790536, 3790536D, 403119100 |
| OE Number | 21397620 |
| Year | 2009- |
| Description | Mack Truck (Class 3-8) |
| CHRA | 4032382 (4032252)(1153055906) |
| Turbo Model | HE500WG, HX55W |
| Manufacturer Part Number | 2841023, 4031191, 403119100 |
| Engine | MP8 Euro-5, MP8 |
| KW | 460/540 |
| Fuel | Diesel |
| Engine Manufacturer | Renault |
| Angle α (compressor housing) | 260º |
| Angle β (turbine housing) | 180º |
| Bearing Housing | 4039258 (Oil Cooled)(1153055451) |
| Turbine Wheel | 4042293 (3767975)(Ind. 86. mm, Exd. 77. mm, Trm 9.87, 12 Blades)(1153055437, 1100016122B, 401050006) |
| Comp. Wheel | 4035468 (Ind. 67.03 mm, Exd. 98. mm, Trm 6.35, 7+7 Blades, Superback) |
| Back plate | 3528096 (1153055300, 1800016024) |
| Heat Shield | 3529846 (3533038)(1153055340, 406500001) |
| Repair Kit | 3575181 (3545577, 3580762)(1153055750, 5000020023) |
| Manufacturer | Holset |
Volvo

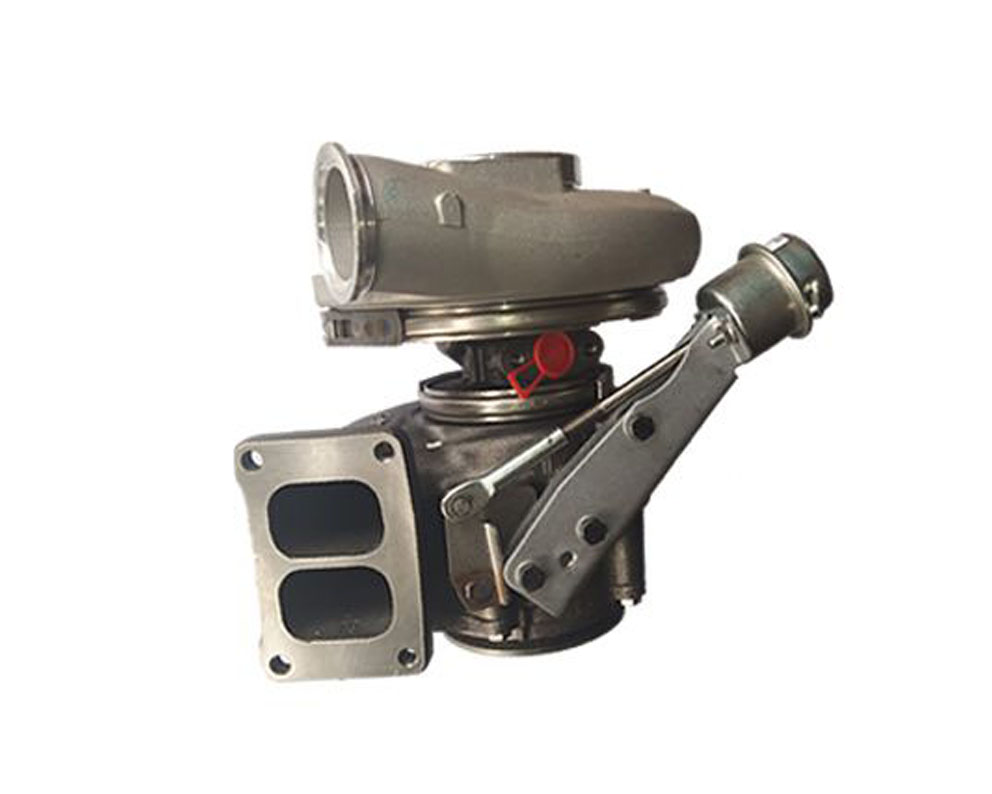

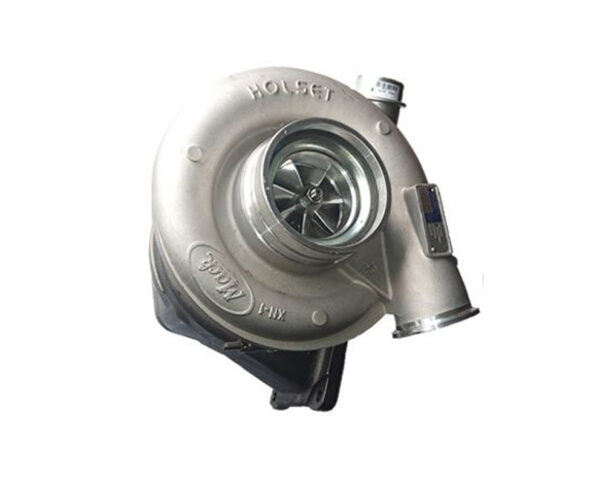

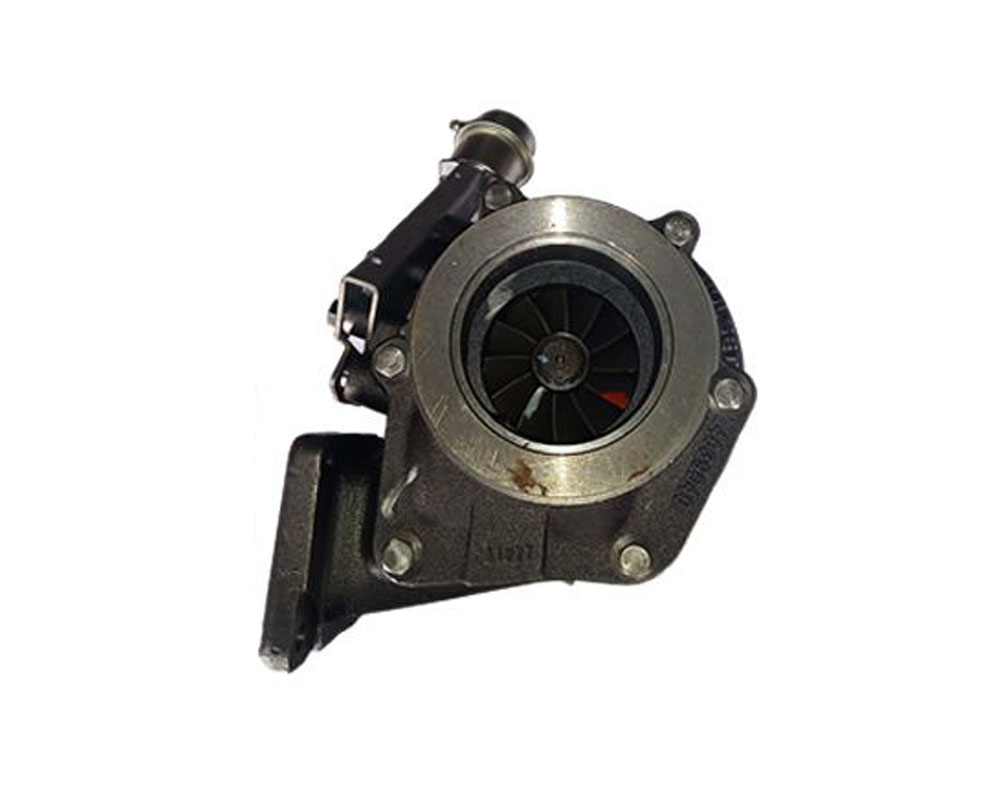

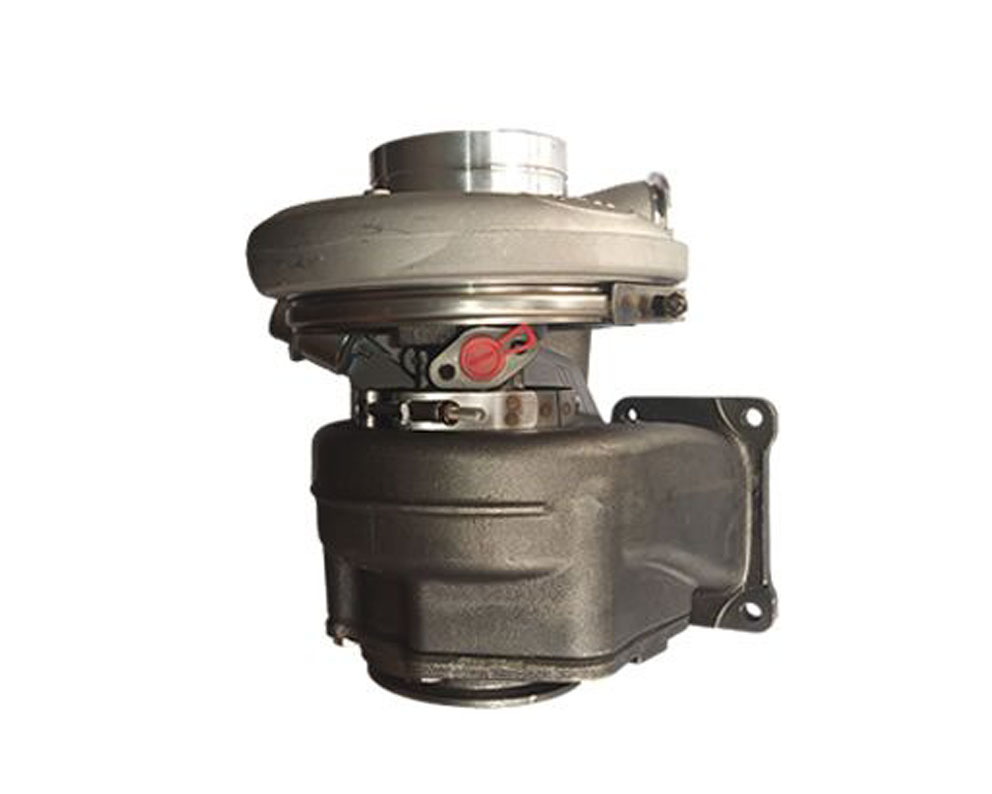

Volvo-Mack Truck HX55W SUPART Turbocharger 5324761
Applications
2009- Volvo-Mack Truck with MP8 Euro-5 Engine
