| Part Number | 3532973 |
| Previous Version | 4033617, 403361700, 4033617H, 3532973R |
| OE number | 866076, 866076-3 |
| Year | 1992-11 |
| Description | Volvo Penta Gen Set Various |
| Manufacturer Part Number | 3532974 |
| CHRA | 3575649 |
| Turbo Model | HX50-D9881H/HA20LC155, HX50M, HX50 |
| Engine | TAMD102D, TAMD102 |
| Fuel | Diesel |
| KW | 272 |
| Angle α (compressor housing) | 90º |
| Angle β (turbine housing) | 90º |
| Bearing Housing | 3533052 (3533051, 3591772)(Oil-cooled)(1900011253) |
| Turbine Wheel | 33530079 (Ind. 86. mm, Exd. 80.01 mm, Trm 13.23, 12 Blades) |
| Rotor Assembly | 3580286 (358028600) |
| Comp. Wheel | 3596134 (3531881, 3531882)(Ind. 67.24 mm, Exd. 97.69 mm, 7+7 Blades) |
| Back plate | 3528096 (352809600)(1800016024) |
| Heat shield Number | 3529846 (352984600, 3533038, 353303800)(1153055340, 2030016003) |
| Repair Kit | 3545627 (876991, 876896)(1153050750, 5000020028B) |
| Turbine Housing (Water-Cooled) | 3534022 (3534031) |
| Compressor Cover | 3533022 |
| Plug | 847492 |
| Gasket Kit | 3575680 (3575680H, 876714-7, 876320-3) |
| Gasket (turbine inlet) | (866086, 421324) |
| Gasket (oil outlet) | 420643 |
| Gasket (oil inlet) | 420641 |
| Listed | |
| Manufacturer | HOLSET |
Volvo

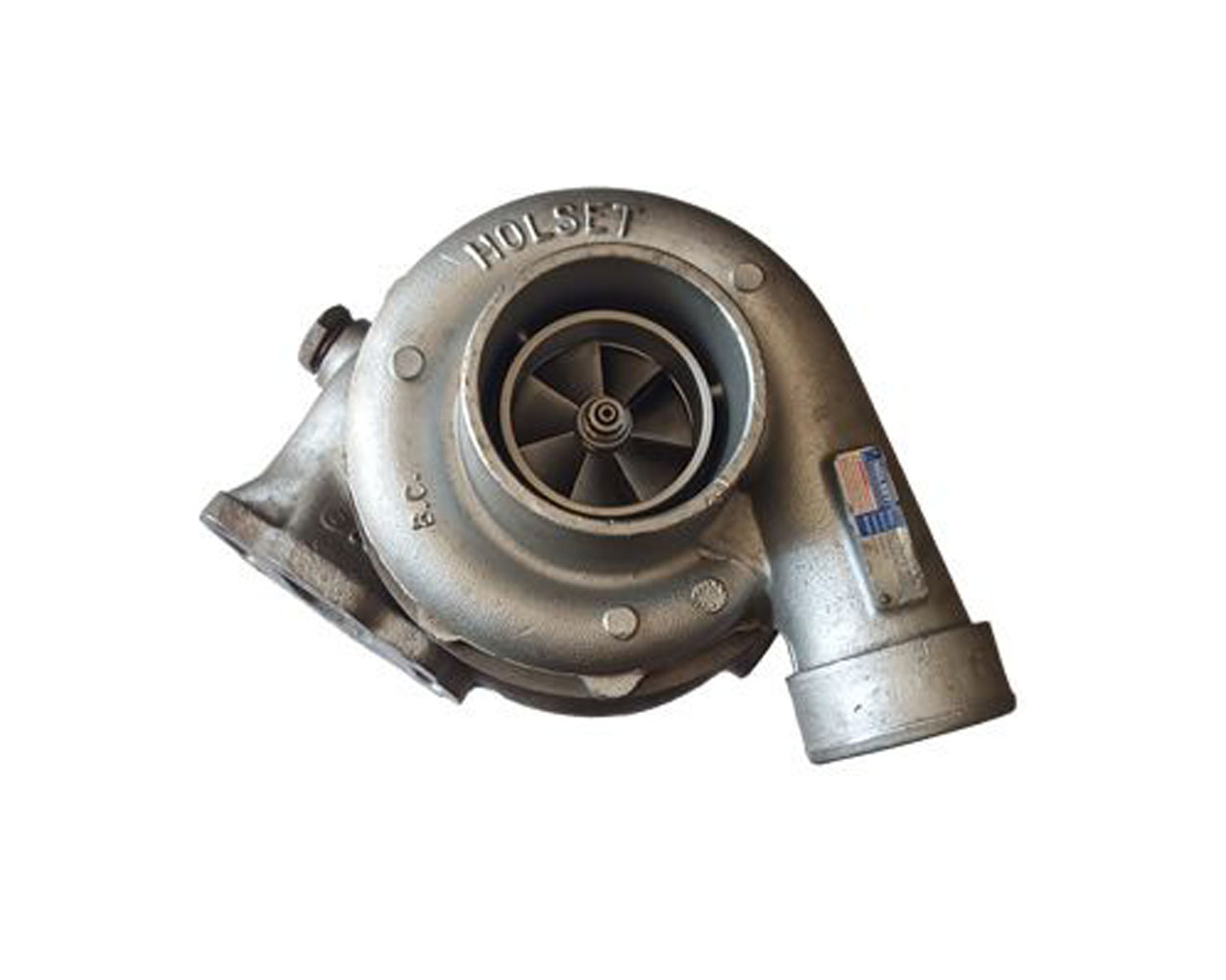

Volvo Penta Gen Set Various HX50M SUPART Turbo 3532973
Applications
1992-11 Volvo Penta Gen Set Various with TAMD102 Engine
