Part Number | 704837-5009S |
Previous Version | 704837-5005S, 704837-5008S, 701100-0002 |
OE number | 214007B, 214007C |
Year | 2000- |
Description | Industrial Compressor driver |
Manufacturer Part Number | 53319707129 |
CHRA | 452669-0008 (452669-5008S, 452669-9008S) |
Turbo Model | UTL9406 |
Engine | VHP 5794GL, 5774LT |
Displacement | 95.0L, 95000 ccm, V12 Cylinders |
KW | 932/1029 HP |
RPM Max | 1200 |
Fuel | CNG (Compressed Natural Gas) |
Bearing Housing | 451861-0002 (Water-Cooled) |
Turbine Wheel | 451882-0005 (Ind. 108.74 mm, Exd. 128.6 mm, 11 Blades) |
Comp. Wheel | 451883-0010 (Ind. 88.6 mm, Exd. 140.45 mm, 7+7 Blades, Superback) |
Back plate | 452668-0001 |
Repair Kit | 705731-0001 |
Turbine Housing | 407293-0034 |
Compressor Cover | 443568-0030 |
Gasket (turbine inlet) | 409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003) |
Gasket (oil outlet) | 210172 (Paper) |
Gasket oil inlet | 210161 (Paper) |
Gasket (water inlet and outlet) | 210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) |
Manufacturer | Honeywell-Garrett, USA |
Waukesha

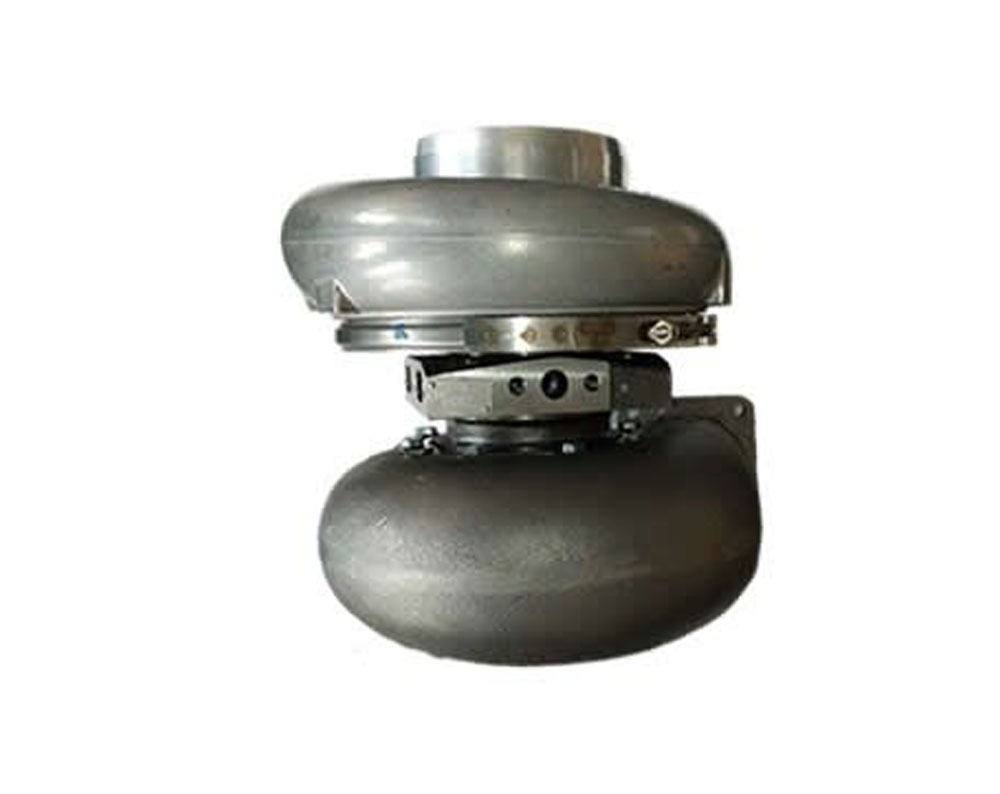

Waukesha Industrial UTL9406 SUPART Turbo 704837-0009
Applications
2000- Waukesha Industrial with VHP 5794GL/5774LT Engine
