| Part Number | VA130035 |
| Previous Part Number | NN130029, NN130041, VB130035, VC130035, VD130035 |
| OE number | 12949718000, 129497-18000, 12947218000, 129492-18000, 129497-18000, 129472-18000, 5T-611, 5T611, B51CND-S0035B, B51CND-S0035G, B51CNDS0035B, B51CNDS0035G |
| Description | Marine |
| V-Spec. | MY29, MY20 |
| CHRA | NE920018 |
| Turbo Model | RHB52H-52002P15NFBRL348C |
| Engine | 4JH-TE, 4JH-TZ |
| Displacement | 1.64L, 1644 ccm, 4 Cylinders |
| Power | 55 HP |
| Angle α (compressor housing) | 90º |
| Angle β (turbine housing) | 218º |
| Bearing Housing | NN133359 (NN133363, NN133396)(Oil Cooled)(1900011187) |
| Turbine Wheel | NN131502 (223T-515, NN131612, NN161312)(Ind. 52.47 mm, Exd. 43.05 mm, 9 Blades)(1100016018) |
| Comp. Wheel | NN136512 (39T-027)(Ind. 33.65 mm, Exd. 50.97 mm, Trm 3.3, 5+5 Blades, Flatback)(1200016503) |
| Back plate | NN133021 (64T-002) |
| Heat Shield | NN137055 (38T-013) |
| Repair Kit | NN139922 (NN139922A)(509T-545) |
| Turbine Housing | NN139452 |
| Compressor Cover | NN134072 |
| Turbine Housing AR | 15 |
| Protector cover(turbine housing) | NN139724 |
| Gasket (turbine inlet) | 210276 (2445051) |
| Gasket (oil outlet) | 210636 (gasket paper) |
| Gasket Kit | |
| Manufacturer | IHI |
Yanmar

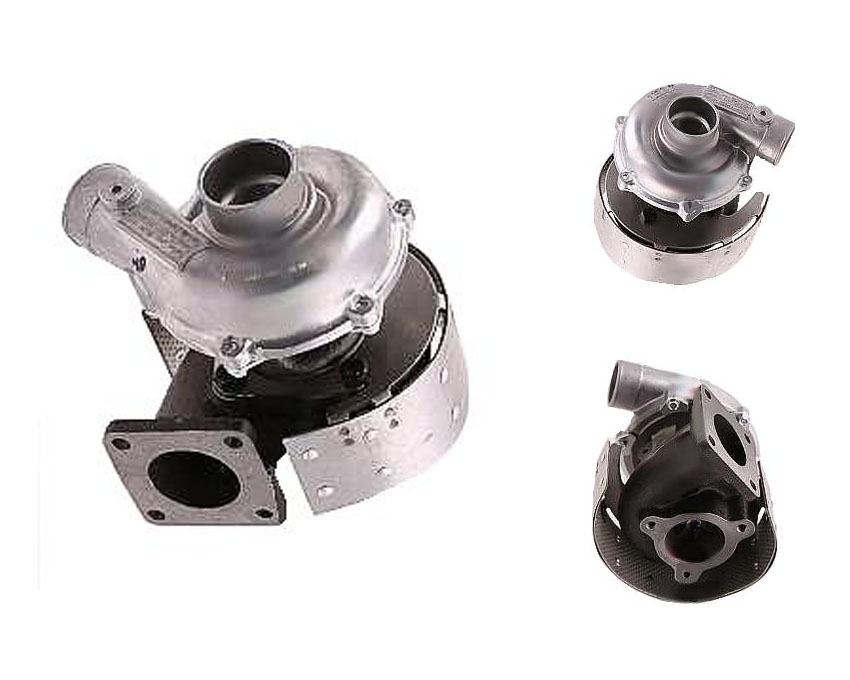

Yanmar Marine RHB52 SUPART Turbo VA130035 MY29
Applications
1983-89 Yanmar Marine with 4JH-TE, 4JH-TZ Engine
