| Part Number | VD240062 |
| Previous Part Number | VC240062, VB240062, VA240062 |
| OE Number | 119174-18011, 11917418011, 119174-18010, C61CND-S0062B, C61CNDS0062B |
| V-Spec | MY80 |
| Description | Marine |
| Turbo Model | RHC61W-943P18NWBRlI5014CHB |
| CHRA | N/A |
| Fuel | Diesel |
| Engine | 4LH-UT, 4LH-UTZAY, 4LH-UTZ, 4LH-UTE |
| Angle α (compressor housing) | 70º |
| Angle β (turbine housing) | 95º |
| Bearing Housing | NE963150 (Oil Cooled)(NH163376, NH163331)(831211260)(831211090) |
| Turbine Wheel | NH261301D (NH261220, NH261201D, NH261301, NH2613020)(834999998, 241001350)(834999998) |
| Comp. Wheel | NH265517 (NH265520)(170268)(NH2655207)(Ind. 51.3 mm, Exd. 69.97 mm, 6+6 Blades, Superback) |
| Back plate | NN193012 |
| Heat shield Number | NH163329 |
| Repair Kit | NH169843 (509T-538) |
| Turbine Housing (Water Cooled) | NE967340 (NH167612, NE967430) |
| Compressor Cover | NH264950 (NH264962) |
| Turbine Housing AR | 18 |
| Gasket (turbine inlet) | 128300-13230 (119171-13510, 119174-18061, 119174-18062, 119174-18070) (Stainless Steel) |
| Gasket (turbine Outlet) | 119171-13510 (Stainless Steel) |
| Gasket (oil outlet) | 210161 (128300-1323)(paper) |
| Manufacturer | IHI |
Yanmar

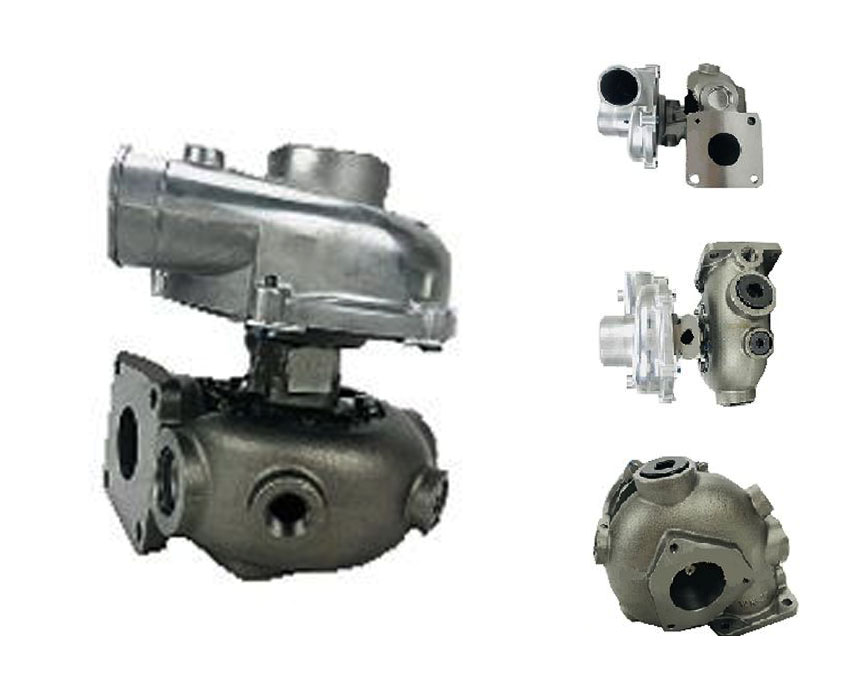

Yanmar Marine RHC61W SUPART Turbo VC240062 MY80
Applications
Yanmar Marine with 4LH-UTE Engine
